USED 1988 CLEAVER BROOKS CB 700-150

Used Cleaver Brooks Steam Boiler 5,175 steam lbs/hr, 6,277,000 BTU/hr, Model CB700-150, 150 HP, MAWP 150 PSI, Fuel Natural Gas, Operation Weight 46,000 lbs, Built 1988

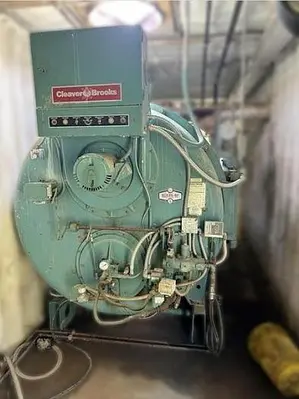

Cleaver Brooks 150 HP 150 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB700-150
Boiler Horsepower: 150 HP
Boiler Type: Steam Boiler
Fuel Type: #2 Oil, it was converted
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 6,277,000 BTU/hr
Steam Capacity: 5,175 steam Lbs/hr
Year Built: 1988
Serial No: L-81976
GPH Oil: N/A

Electrical Requirements

Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 17 AMP
Minimum Circuit Ampacity: 7.6 AMP
Maximum Rating of Circuit Protection: N/A

Blower Motor
Horsepower: N/A

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A

Overall Dimensions
Length: 16.58 ft
Width: 7.08 ft
Height: 6.41 ft

Boiler Weight: 13,800 lbs
Operation Weight: 46,000 lbs.
Shipping Weight: 46,000 lbs.
