Used Cleaver Brooks Steam Boiler 6,900 steam lbs/hr, 8,370,000 BTU/hr, Model CB 700-200, 200 HP, MAWP 150 PSI, Fuel Natural Gas, Serial No L-94197, Boiler Weight 16,300 lbs, Built 1995. This is a refurbished
Cleaver Brooks 200 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB 700-200
Boiler Horsepower: 200 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil or Combination
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 8,370,000 BTU/hr
Steam Capacity: 6,900 steam Lbs/hr
Year Built: 1995
Serial No: L-94197
GPH Oil: N/A

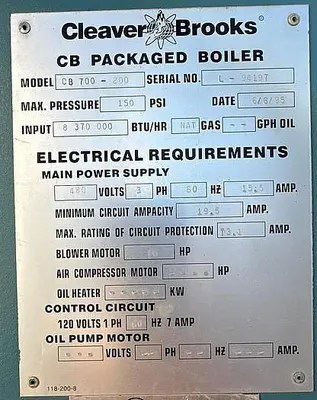

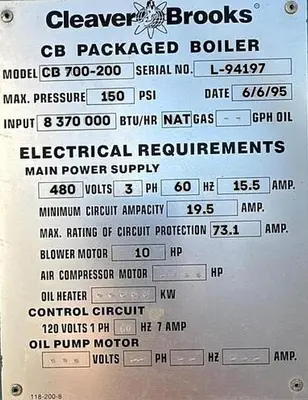

Electrical Requirements
Main Power Supply
Voltage: 480V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 15.5 AMP
Minimum Circuit Ampacity: 19.5 AMP
Maximum Rating of Circuit Protection: 73.1 AMP
Blower Motor
Horsepower: 10 HP
Air Compressor Motor
Horsepower: N/A
Oil Heater: N/A
Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A
Overall Dimensions
Length: 19.33 ft
Width: 7.08 ft
Height: 7.33 ft
Boiler Weight: 16,300 lbs
