USED 1987 CLEAVER BROOKS CB 700-200

Used Cleaver Brooks Steam Boiler, Approx. 6,900 steam lbs/hr, Approx. 6,695,000 BTU/hr, Model CB 700-200, 200 HP, MAWP 150 PSI, Fuel Natural Gas Fired, Serial No L-83490. Boiler Weight 16,300 lbs. Built 1987

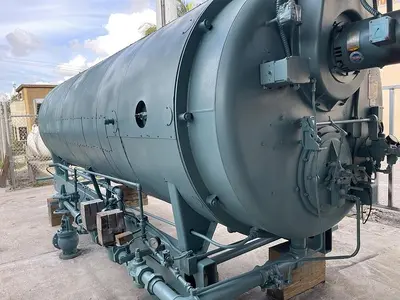

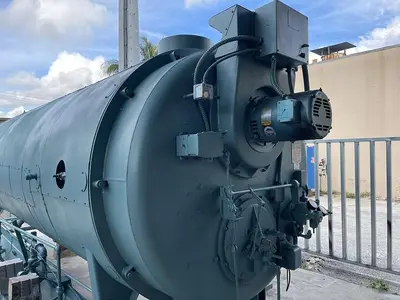

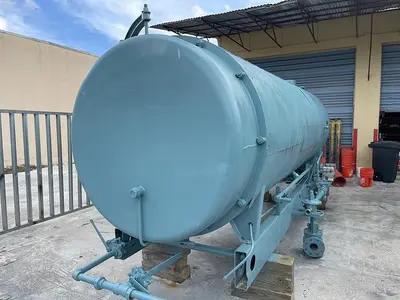

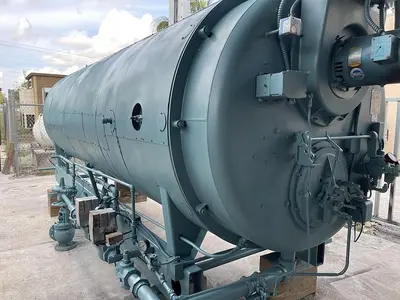

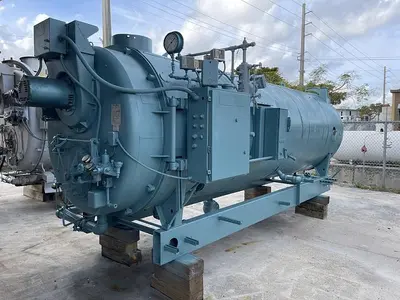

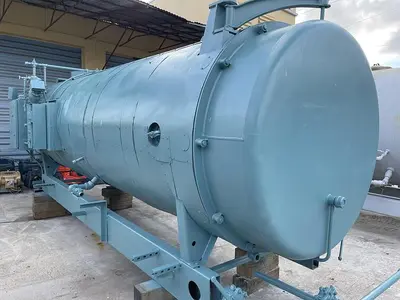

Cleaver Brooks 200 HP 150 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB 700-200
Boiler Horsepower: 200 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 6,695,000 BTU/hr
Steam Capacity: 6,900 steam Lbs/hr
Year Built: 1998
Serial No: L-83490
GPH Oil: N/A

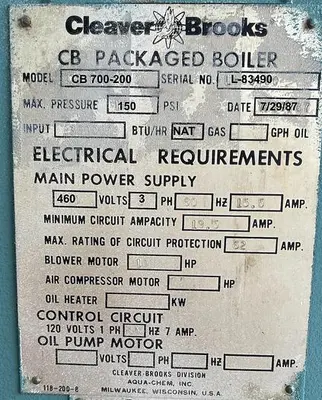

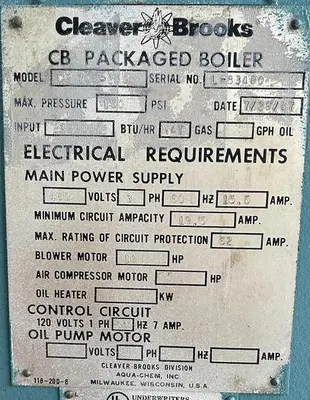

Electrical Requirements

Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 15.5 AMP
Minimum Circuit Ampacity: 19.5 AMP
Maximum Rating of Circuit Protection: 62 AMP

Blower Motor
Horsepower: 10 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A

Overall Dimensions
Length: 19.33 ft
Width: 7.08 ft
Height: 7.33 ft

Boiler Weight: 16,300 lbs
