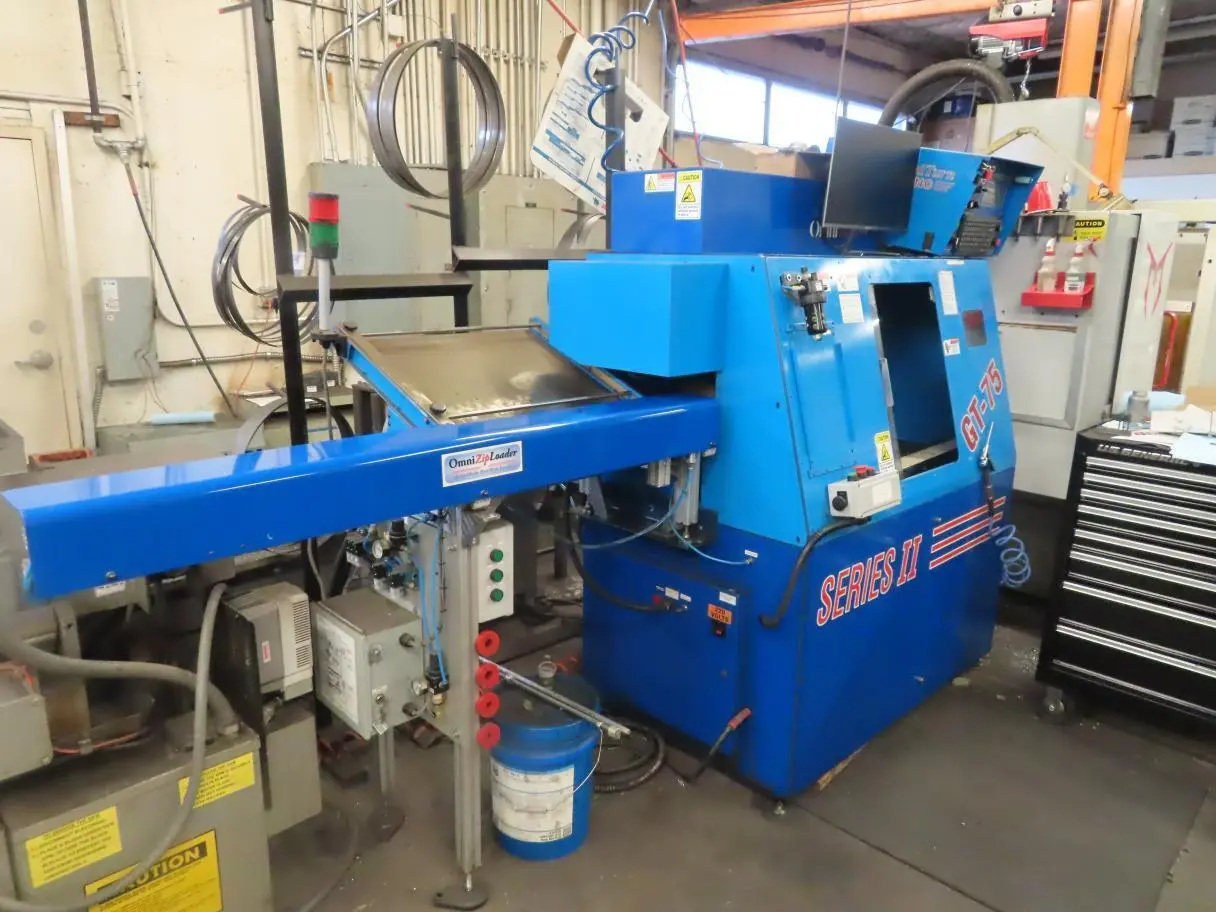

USED 2022 OMNITURN GT-75 SERIES II

CNC Lathe with Barfeeder
Manufacturer: NC Electronics, Inc. (Port Orford, OR)
Model: GT-75 Series II OmniTurn Lathe
Year of Manufacture: 2022
Electrics: 208-240 Volt, 3 Phase, 60 Cycle, 20 Amps
Air Required: 3 SCFM @ 70 PSI
Main Motor: 5 HP
Machining Hours (meter): 1,011

Specifications & Features:
...Generation 4 CNC, PC Based
......Standard G&M Codes
......8 GB Hard Drive
......USB Thumb Drive
...Workholding: 5C Collet
...Gang Type Tooling
......8-Position Tool Holder (quick change)
...Spindle Specifications:
......Speed: 100 – 4,000 RPM
......Cartridge Type: Class 7 Angular Contact
......Spindle Nose: 5C w/ 4° Camlock
...Drawtube Bore: 1.125”
...Collet Actuator: Pneumatic
...Travels & Feedrates:
......X-Axis: 12”
......Z-Axis: 9”
......Resolution of Slide Travel: 0.00005”
......Repeatability of Slide Travel: 0.0001”
...Threading: 240 TPI to Unlimited
...Max Rapid & Cutting: 300 IPM
...Max. Cutting Diameter: 6”
...Max. Bar Diameter: 1.06”
...Linear Ways: Precision Linear Guides
...Ball Screws: Precision Ground
...Headstock: Cast Iron (Meehanite)
...Coolant Pump: 1/8 HP
...Standard Parts Conveyor
...Spindle Liners
...OmniZip Bar Loader
...Manuals

CNC Lathe Dimensions (approx.): 66" x 34" x 75" (n/i loader)
System Weight (approx.): 1,750 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This is a 1st-owner machine; in excellent condition. Was purchased 3-1/2 years ago in June 2022. Machine has low hours; in excellent shape. Comes with a bar loader, parts conveyor, spindle liners, and manuals. The owner is not utilizing as much as planned; needs room for other equipment. He can load the equipment onto a Buyer’s transportation. Machine is under power and available for test, inspection.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Eugene, OR Metro Area

Equipment is under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.

Barfeeder
Parts Conveyor
Spindle Liners
