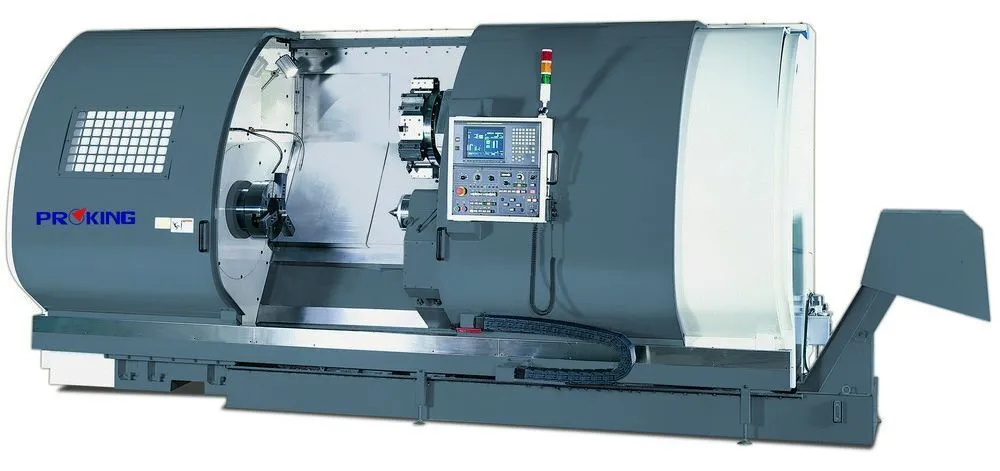

NEW MEGABORE SS-27

Megabore SS-27 Slant bed
Hollow spindle 5"inch.
Swing over bed 700mm
Swing over cross slide 570mm
* One piece bed, 45° slant bed construction ensures maximum stability and convenient chip disposal.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#6 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.

Distance between centers 700mm, 1200mm, 1700mm, 2200mm, 2700mm, 3200mm
Spindle nose A2-11
Spindle bore Ø130mm (5.19)
Spindle speed 1800/min
Spindle motor 22KW (α22/7000i)
Controller FANUC / FAGOR / SIEMENS

* V12 turret.
* Rotating tailstock quill with 115mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front chip conveyor.
