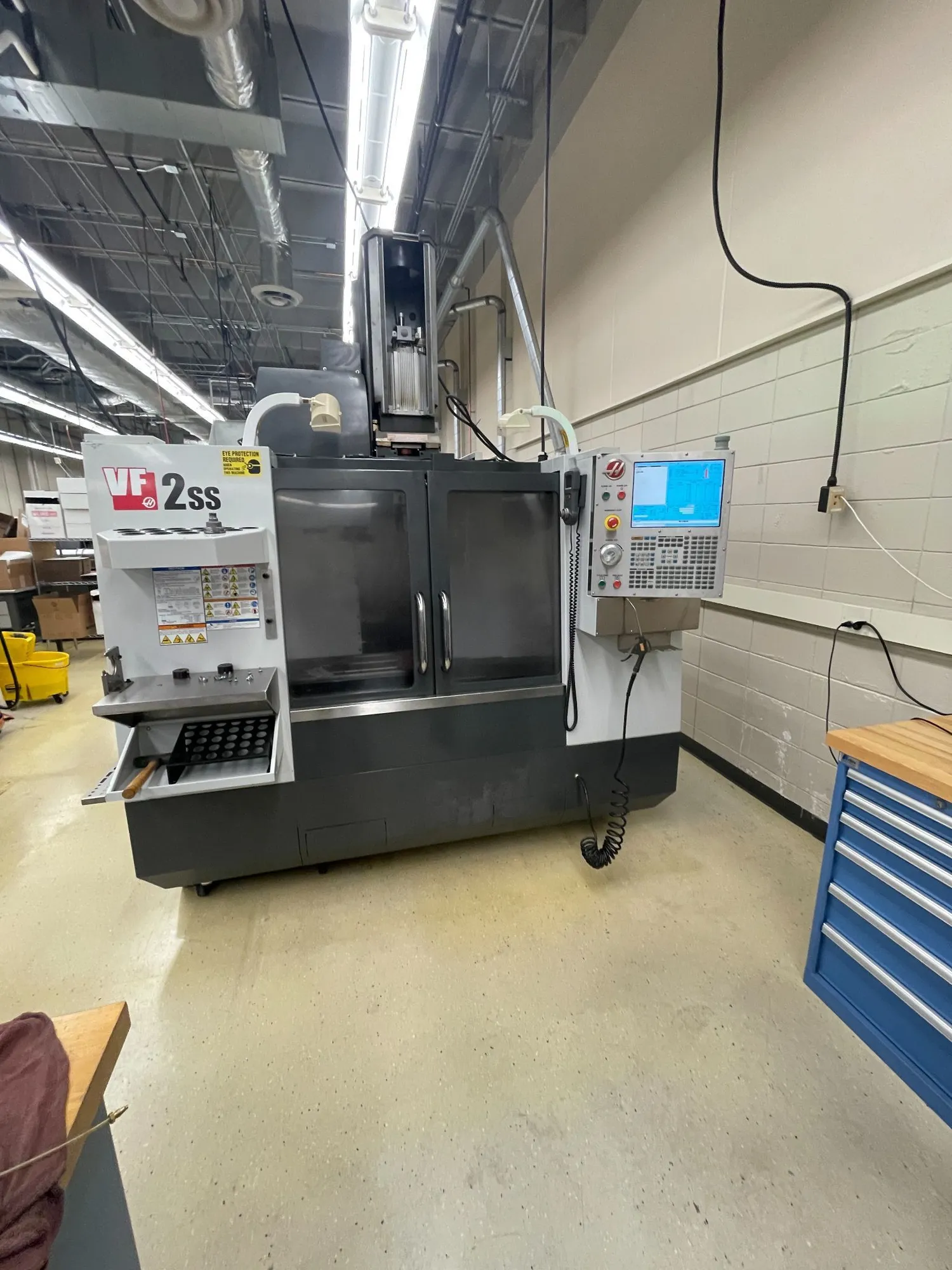

2010 HAAS VF-2SS CNC Vertical Machining Center, used with approx. 5729 hours. Features 30" x 16" x 20" travels, 12,000 RPM spindle, 24-tool changer, HAAS CNC control, rigid tapping, and more. Ideal for precision machining tasks, SPINDLE REBUILT IN 2025
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
SPINDLE REBUILT IN 2025
TRAVEL, X AXIS ---------------------------- 30"
TRAVEL, Y AXIS ---------------------------- 16"
TRAVEL, Z AXIS ---------------------------- 20"
TABLE SIZE -------------------------------- 36" X 14"
MAX. WEIGHT ON TABLE (EVENLY DISTRIBUTED) - 1,500 LBS.
SPINDLE SPEED ----------------------------- 12,000 RPM
SPINDLE TAPER ----------------------------- 40 CAT.
TOOL CHANGER ------------------------------ 24
SPINDLE MOTOR ----------------------------- 30 HP 3/60/260 VOLTS
RUNNING TIME ------------------------------ APPROX. 5729 HOURS
APPROXIMATE MACHINE WEIGHT ---------------- 7,800 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 89"(LR) X 92"(FB) X 102"(H)
HAAS CNC CONTROL
SIDE MOUNT ATC
COOLANT TANK AND PUMP
RIGID TAPPING
HI INTENSITY LIGHTING
REMOTE JOG HANDLE
COLOR LCD
EXTERIOR HIGH VOLT TRANSFORMER
TOOLING
