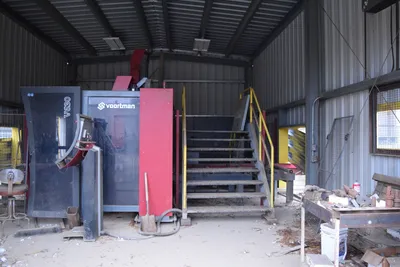

This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.
Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.
| Max Profile Width | 42" | 1,066.8 mm |
| Minimum Profile Width | 2.5" | 63.5 mm |
| Max Profile Height | 18" | 457.2 mm |
| Minimum Profile Height | 0.38" | 9.652 mm |
| Number of Spindles | 3 | 3 |
| Spindle Power | 40 hp | 29.8 kW |
| Spindle Speed | 1002500 rpm | 1,002,500 RPM |
| Drill Tooling Type | SK40 tool holder | SK40 tool holder |
| Tool Changer | 3 × 6‑station automatic tool changers | 3 × 6‑station automatic tool changers |
| In-feed Conveyors | 66' | 20,117 mm |
| In-feed Transfers | 26' | 7,924.8 mm |
| Out-Feed Conveyors | 66' | 20,117 mm |
| Out-Feed Transfers | 26' | 7,924.8 mm |
| Positioning weight | 29,100 lb | 13,199.6 kg |
| Weight | 24,250 lbs | 24,250 lbs |
- Operating Range (inch): 25/64 × 2 1/3 to 17 3/4 × 44
- Positioning Weight Capacity: 29,100 lbs
- Drilling & Positioning: Servo‑driven
- Positioning Speed (X): 138 f/min
- Positioning Speed (Y): 98 f/min
- Positioning Speed (Z): 98 f/min
- Drilling Units: 3
- Nominal Power: 40 HP
- Spindle Speed (stepless): 0–2,500 rpm
- Tool Changer: 3 × 6‑station automatic tool changers
- Tool Holder: SK40
- Drill Diameter Capacity: 13/64" – 1‑9/16"
- Thread Tapping: M6 – M30
Infeed and outfeed conveyors included; final lengths to be confirmed.
