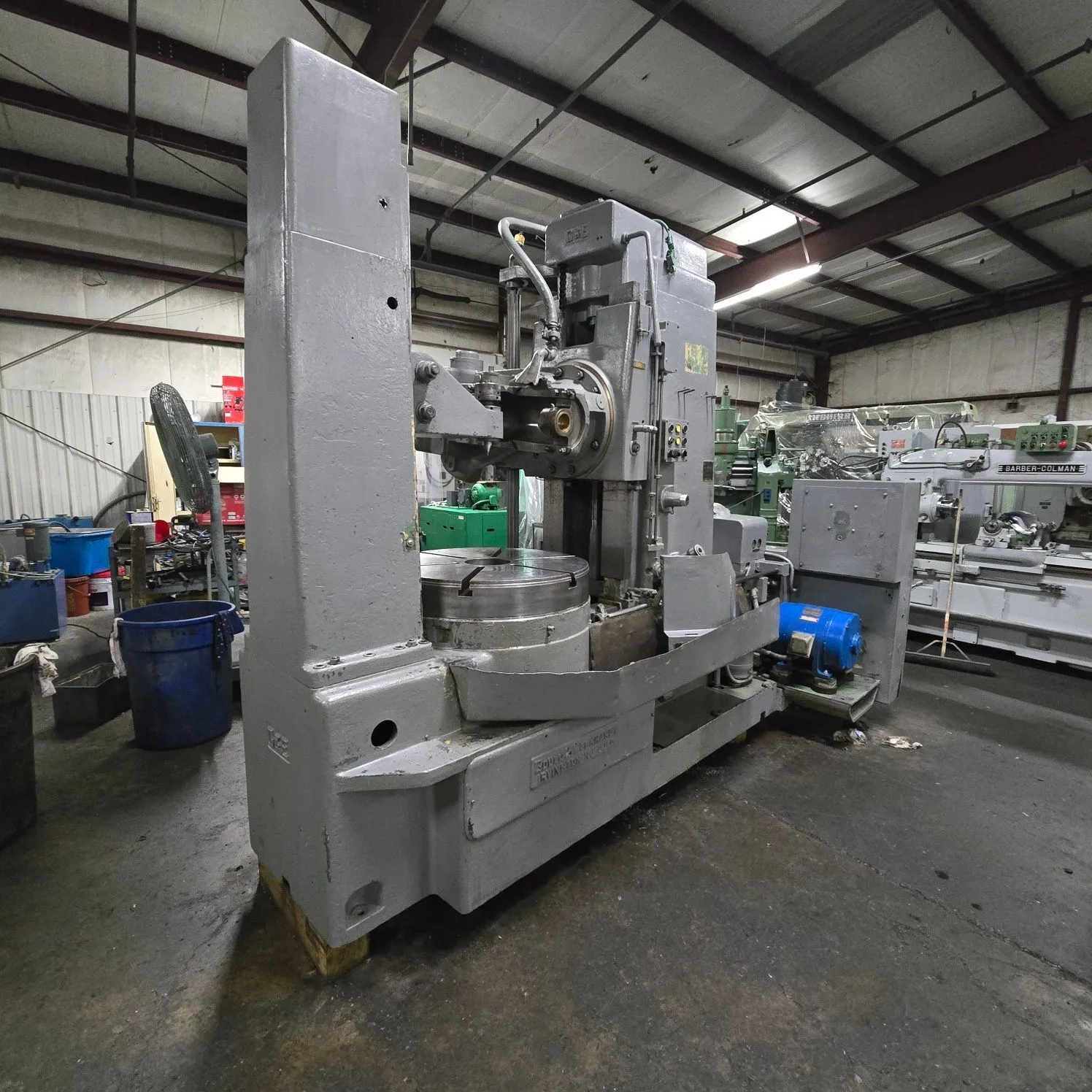

USED GOULD & EBERHARDT 48HWD

Gould & Eberhardt model 48HWD 32" diameter table , heavy duty worm drive head, differential , infeed, tailstock w/ misc tooling and gears s/n 5870A10

Gould & Eberhardt Heavy duty Vertical gear hobber
Model 48HWD
s/n 5870A10
Machine electronics have been updated as well as 15HP main
drive motor 4/6/26

This heavy duty machine has been delivered to our Statesville NC
facility . the machine Has been gone through , tested and repaired
as needed. IT is a very good running machine

Machine catalog specs as follows :
max diameter w/ support 34"
max diameter w/o support 48"
max pitch 1.5 dp
max face capacity 28" (tbd)
Min centers 0"
max diam. hob 8"
Diameter work table 32"
Max Height under tailstock 38"
Main motor 10 HP
floor space 52" x 126"
machine weight 19,000 lbs

Machine is equipped with :
Special heavy duty worm drive head (HWD)
Differential
Infeed
swing away tailstock
hob arbor
Push button controls
100 teeth in worm wheel - 20/N
Misc. change gears & tooling
updated Electrics Have been added
Manuals

This machine is presently in our Statesville NC facility and can be
inspected under power with proper notice. Machine Has been gone through.
contact rich at [email protected] to request a formal quote & Pricing
or visit our website at www.pisellient.com for more photos and other
Machines and equipment
