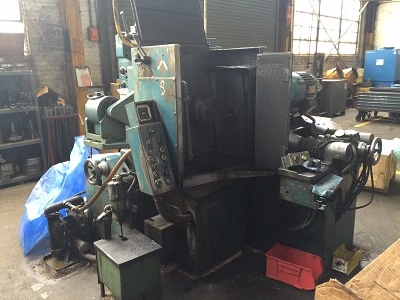

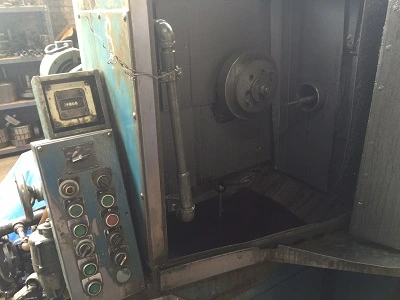

The No, 516 Hypoid Lapper is designed primarily tor lapping automotive and truck spiral bevel and hypoid gears and pinions operating at a 90" shaft angle with gear diameters up to 24" (609.6 mm).
The No. 516 Hypoid tapper affords fast lapping times, high quality, accurate control and great flexibility, Most important is Swing Pinion Cone (SPC} lapping action which, combined with the conventional pinion horizontal and backlash motions, permits fast accurate lap• ping of the tooth surface.
This SPC tapping method produces pinions and gears precisely mated to operate in automotive and truck drive axles under the ever changing high way driving conditions with maximum smoothness and quietness.
| Offset Range | 6 | 6 |
| Pinion Cone Range | 12" | 304.8 mm |
| Gear Cone Range | 24" | 609.6 mm |
| Dimensions | 80" x 90" x 72" | 80" x 90" x 72" |
| Weight | 11,200# | 11,200# |
EQUIPPED WITH:
Hydraulic Chucking
Lapping System
Drawbar
Work Holding
SPECIFICATIONS:
Capacity:
Diameter of Gear (Max): 24"
Diameter of Pinion (Max): 12"
Offset of Gear Spindle Above or Below Center of Pinion Spindle:
(Max.): 6"
Drive Spindle:
Speed: 1200 RPM
Diameter of Taper at Large End: 3-29/32"
Taper Per Foot: 39/64"
Depth of Taper: 3"
Brake Spindle:
Diameter of Taper at Large End: 2-19/64"
Taper Per Foot: 1/2"
Depth Of Taper: 3"
Electrical Equipment:
Main Motor, Standard: 5 HP, 1800 RPM
Hydraulic Pump Motor: 1 HP, 1800 RPM
Miscellaneous:
Floor Space: 80" x 90"
Height: 72"
Net Weight, Approximate: 11,200 lbs
Hydraulic Chucking
Lapping System
Drawbar
Work Holding
