67" Table 10HP Spindle Sharp KMA-1 VERTICAL MILL, Geared Head, #50 PDB, Sony DRO, Bed Mill,

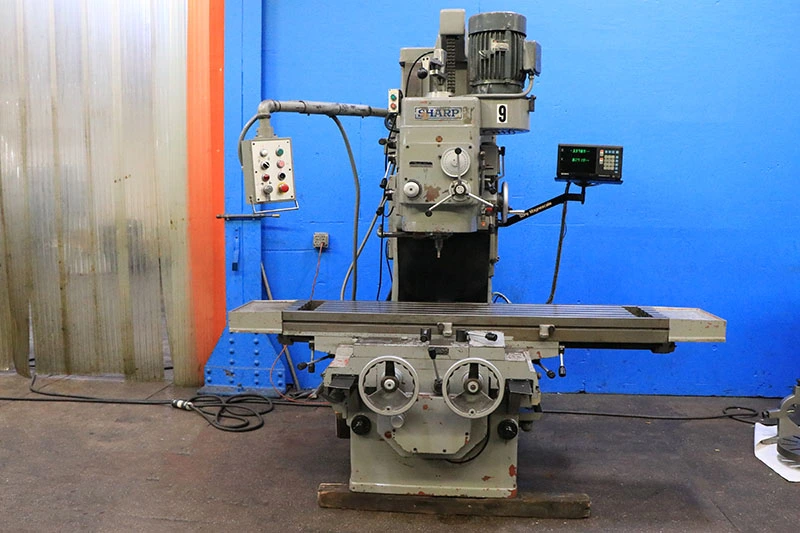

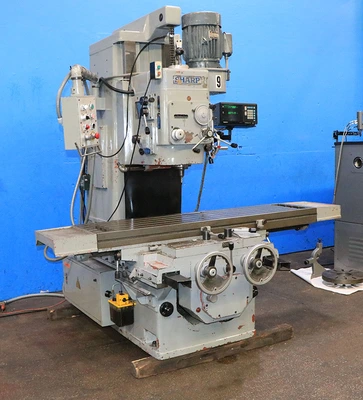

SHARP VERTICAL BED MILL
MODEL: KMA-1 S/N: 11055 MFG: 1990
SPECIFICATIONS:
TABLE SIZE ................................. 67" x 15-15/16"
LONGITUDINAL TABLE TRAVEL .................. 39-3/4"
CROSS TABLE TRAVEL ......................... 14-15/16"
HEAD VERTICAL TRAVEL ....................... 19-11/16"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE ..... 23-5/8"
FEED RANGE LONGITUDINAL & CROSS ............ 1 - 34 IPM
FEED RANGE VERTICAL HEAD ................... .002 - .008 IPM
SPINDLE TAPER .............................. #50 STD
SPINDLE SPEEDS (12) ........................ 45 - 1500 RPM
APPROXIMATE DIMENSIONS ..................... 126" x 79" x 87"H
APPROXIMATE WEIGHT ......................... 8,800 LBS
EQUIPPED WITH:

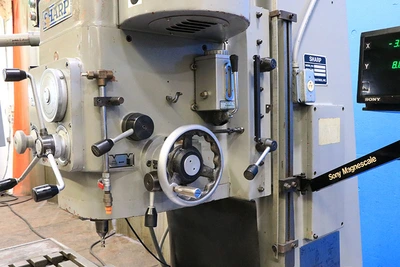

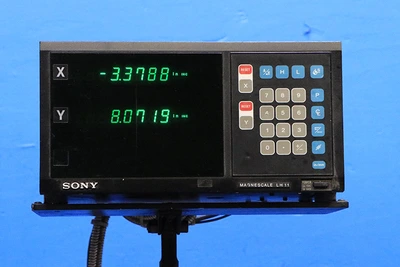

SONY TWO AXIS DIGITAL READOUT
HARDENED & GROUND BOX GUIDEWAYS
POWER RAPID TRAVERSE
BACKLASH ELIMINATOR

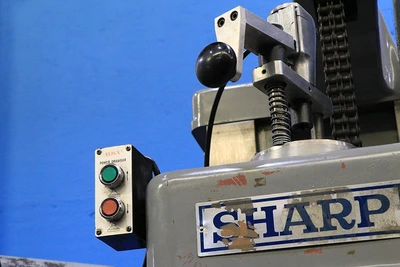

POWER DRAW BAR
AUTOMATIC LUBRICATION SYSTEM

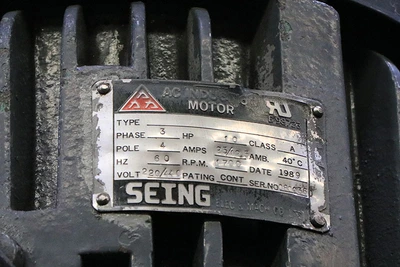

10 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
