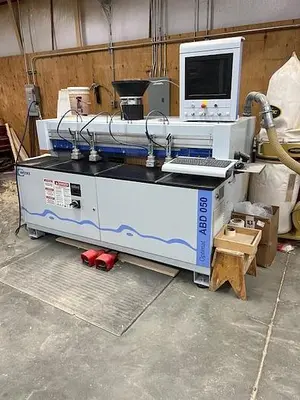

2015 Weeke Optimat ABD050/12/NA Boring, Dowel Inserting Machine
The 2015 Weeke Optimat ABD050/12/NA is an industrial control panel machine specifically designed for boring, dowel insertion, and hardware inserting tasks. Manufactured by Weeke, this model is known for its precision and reliability in cabinetry and woodworking applications. Below are the specifications and operational details:

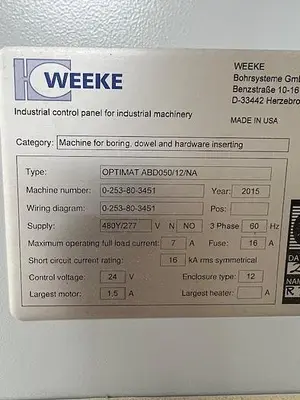

Machine Specifications:
Machine Type: Optimat ABD050/12/NA
Machine Number: 0-253-80-3451
Manufacture Year: 2015
Category: Machine for boring, dowel, and hardware inserting
Electrical and Operational Specifications:
Power Supply: 480Y/277 volts, 3-phase, 60 Hz
Maximum Operating Full Load Current: 7 amps
Fuse Rating: 16 amps
Short Circuit Current Rating: 16 kA rms symmetrical
Control Voltage: 24 volts
Largest Motor Rating: 1.5 amps
Physical and Safety Features:
Enclosure Type: Type 12, suitable for industrial environments with protection against dust and limited water ingress.
Largest Heater Capacity: Not specified in this model, typically aligned with industrial temperature requirements.
This machine is designed to meet the demands of industrial woodworking environments, providing automated solutions for boring, doweling, and inserting hardware with accuracy and efficiency. For further details or confirmation of specifications, please contact us directly.
