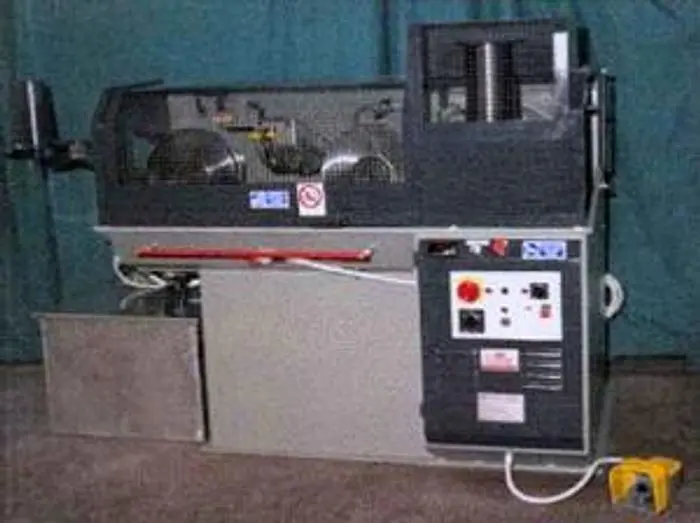

NEW TVN Mod. TMS/2E Twenty (20) Electronic Passages Wire-Drawing Machine, max wire 4mm

Special multiple passages wire-drawing machine with electronically adjustable clutch through potentiometer and with digital visualizator for drawing both big wires and capillary wires.
The machine has electronic variation of drawing speed through potentiometer.
Foot control selectable for die-plates inserting, rotating protection on the work zone and standards control (continuous with low protection and foot-control with high protection).

Forced lubrication on the wire-drawing plates with double entry and on the traction toiler with decantation and recirculation system. The lubricant tank is outside and detached from the machine with 150 liters capacity.
Coiler 320mm diam. on the last passage.
Wire input passage 4 mm diam.
Drawing speed 0 - 300 Mt/1'.
Reduction of section 15%.
Tungsten carbide driving toiler.
Downcoiler group with safety stop and sensor for end thread.
Vertical revolution counter toiler with planning.
Construction standards in accordance to "CE" with respective documentation.
Installed power 18 KW.
Power supply 380 V. 50HZ Three-phase.
Dimensions

Length 2000 mm
Width 900 mm
Height 1130 mm
Approx. Weight 1400 kg
Availability:

Ex-Factory, Italy
