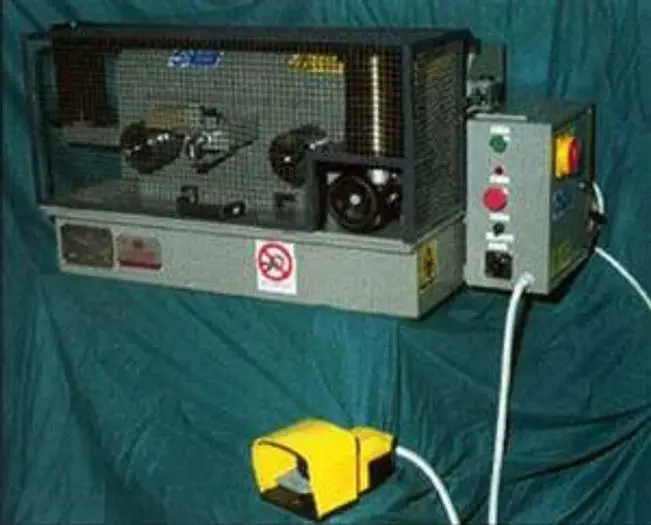

NEW TVN Mod. TL4 Four Passages Wire-Drawing Machine

Four passages multiple wire-drawing machine with clutch adjustable on the coiler.
Rotating protection on the coilers and safety standards control (continuous control with low protection and foot control with high protection).

Forced lubrication on the hole dies.
Drawing speed 1'/40 mt.
Minimum wire output size; 0,2mm (.008")
Wire capacity is approximated, based on dead soft non ferrous wire
Construction standards in accordance to "CE" with respective documentation.
Installed horse power 0,75 KW.
Power supply 380V. 50HZ 3-Phase.
Dimensions:

Length 1200 mm
Width 580 mm
Height 550 mm
Approx.Weight 110 kg
Availability:

Ex-Factory, Italy

Maximum wire starting size: 1.5mm (.060")
