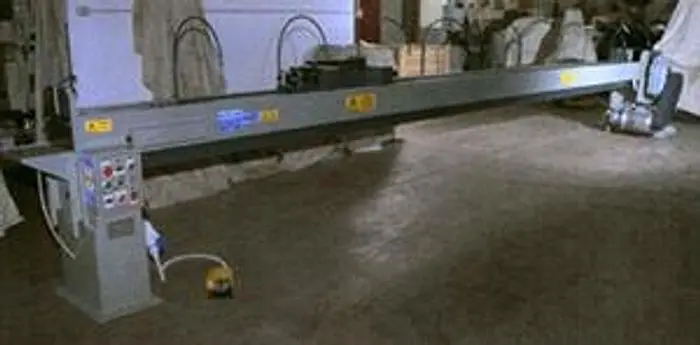

NEW TVN/Goldpro® Mod. TK35 Chain Wire Drawing Machine, 3500kg Drawing Power

Linear chain wire-drawing machine with useful drawing-work length variable on request (5 mt. about standard), studied for heavy-duty wiredrawing operations. Max drawing 5000 kg. with opening of the self-centring pincers max 25 mm.
The drawing speed is controlled from the work station and adjustable from 1 to 10 meters per minute with constant couple and from 10 to 20 meters per minute with constant power. The carriage has shock absorbers and a special gripping system. Automatic carriage return with safety device. The traction group is composed with a gear reducer in oil bath and a vectorial asynchronous three-phase motor. Minimum maintenance with simple level controls every 2000 hours of working. There is the possibility to release the carriage at intermediate stroke with safety device. Die-plates lubrication and adjustable working plan.
Construction standards in accordance to “CE” with respective documentation.

Installed horse power 10 KW.
Power supply 380 V. 50 HZ. 3-phase + N
Dimensions:

Length (5 mt. useful) 6950 mm
Width 880 mm
Height 1400 mm
Approx.Weight 1280 kg
Variations And Prices

3 METRES USEFUL 3500 KILOS……………Mod. TK35…………..€ 30.472,00
DRAWING POWER
5 METRES USEFUL 3500 KILOS……….Mod. TK35……….. € 34.351,00
DRAWING POWER
7 METRES USEFUL 3500 KILOS………..Mod. TK35………..€ 38.124,00
DRAWING POWE
11 METRES USEFUL 3500 KILOS………Mod. TK35……. €48.040,00
DRAWING POWER (divided
13 METRES USEFUL 3500 KILOS…….Mod. TK35……….. € 51.360,00
DRAWING POWER (divided)

Parts:

Machine in two separated parts to facilitate the carriage…….. € 1.938,00
Screw-plates lubrication for TK35 ………. € 807,00
Adjustable work plan for TK35…….. € 518,00
Counter pipe stretcher for TK35 …….. € 761,00
Chamfering equipment for strips for TK35………… € 642,00
Anchorate pin holder frame for TK35 ………….. € 722,00
Spare return carriage rope for TK35 (price at metre) …. € 7,62
Spare return carriage belt for TK35 (price at metre)……. € 31,00
Spare rotating couple tips for TK35…… € 397,00
Availability:

Ex-Factory, Italy
