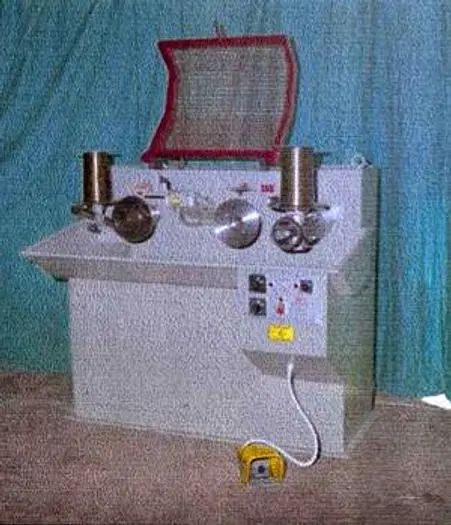

NEW TVN Mod. T10/7,5/EX Ten (10) Passages Wire Drawing Machine, max wire 3,8 mm

Multiple passages wire-drawing machines with a particularly efficient patented clutch for drawing big wires (3,8 mm max diam.) and small wires (0,15 mm min).
The machines have two speeds, foot-control selectable for die-plate inserting, rotating protection on the toilers and standards control (continuous control with low protection and foot control with high protection).

Forced lubrication on the wire-drawing plate and on the toiler with decantation and recirculation system.
Power KW 5.6/4.1
Thread Input 3,8
Speed mt/min 100
Dimensions

Length 1550 mm
Width 850 mm
Height 1275 mm
Approx. Weight 450 kg
Availability:

Ex-Factory, Italy

Packing: € 660,00
