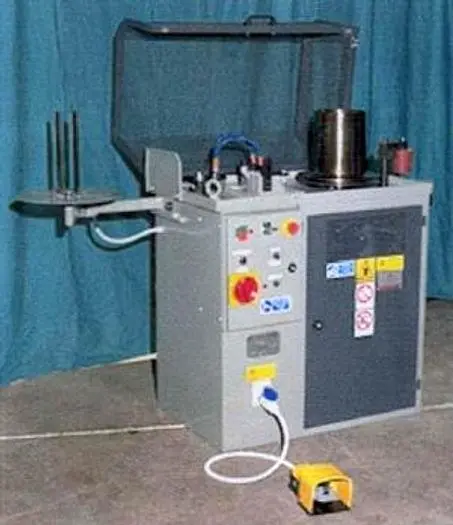

NEW TVN Mod. T2/P Two Passages Bull Block Wire Drawing Machine, 5mm max gold wire input
Overview
Description
The machine is for the smoothing of the thread either coming out of the rolling mill or from the continuous casting furnace. This allows the thread to obtain the best and finest diameter in order to fit into the other multiple wire-drawing machines. The machine has two speeds, can also be activated through foot-pedal, it has a forced lubrication on the screw plates and a safety micro-switch on the reel.
Wire input diam. 6 mm on silver, 5 mm on gold.
Reduction of section 10/15%.
Wire-drawing speed mt/1' 30/15.
Diameter on the winding point is 213 mm. (8.38in)
A special pincers allows to make easily the threading.
Construction standards in accordance to "CE" with respective documentation.
Installed horse power 2,2/1,5 KW.
Power supply 380 V. 50 HZ. Triphase.
Dimensions:
Length 1400 mm
Width 530 mm
Height 1100 mm
Approx.Weight 230 kg
Availability:
Ex-Factory, Italy
