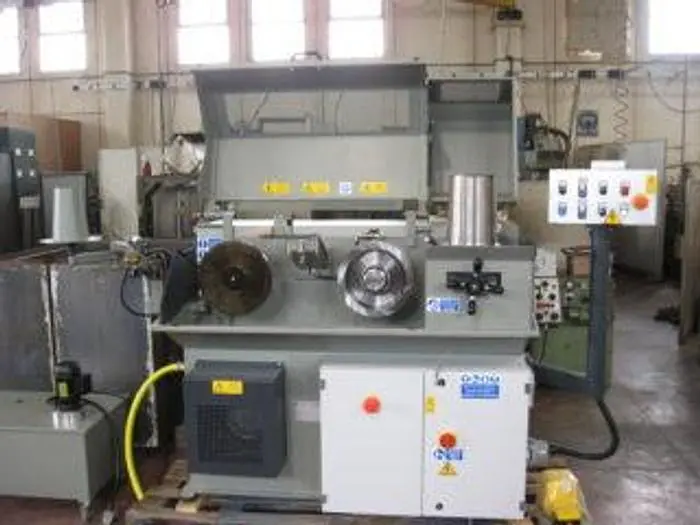

NEW TVN Mod. T10/S Ten (10) Passages Wire Drawing Machine, max wire 5mm

Scroll Down To See Video!

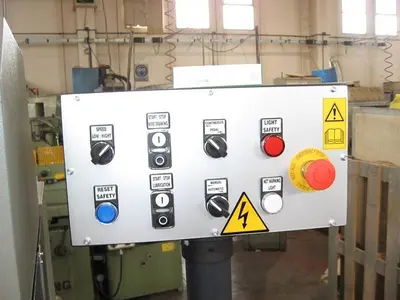

Special multiple passages wire-drawing machine for wire 5 mm diam. with patented clutch winch allows the finest adjustment for any type of thread in operation. The machine has two speeds, foot-control, rotating protection on the working place and standards control (continuous control with low protection and foot-control with high protection).

Forced lubrication on the wire-drawing plate and on the coiler with decantation and recirculation system.

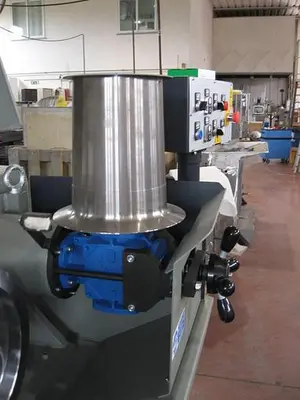

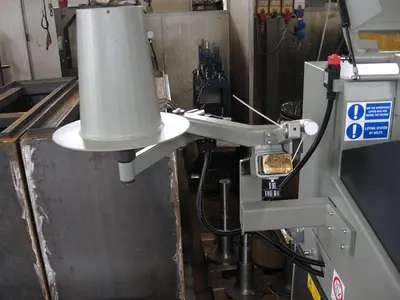

Coiler 300 mm diam. on the last passage.
Wire input 5 mm diam. on the 6° passage.
Drawing speed 100/40 mt.l1'.
Installed horse power 7.5/6 KW.
Power supply 380 V. 50 HZ. Three-phase.
Dimensions:

Length 2000 mm
Width 900 mm
Height 1130 mm
Approx. Weight 1400 kg
Availability:

Ex-Factory, Italy
