NEW TVN T12/EX/C/BEL
Overview
Description

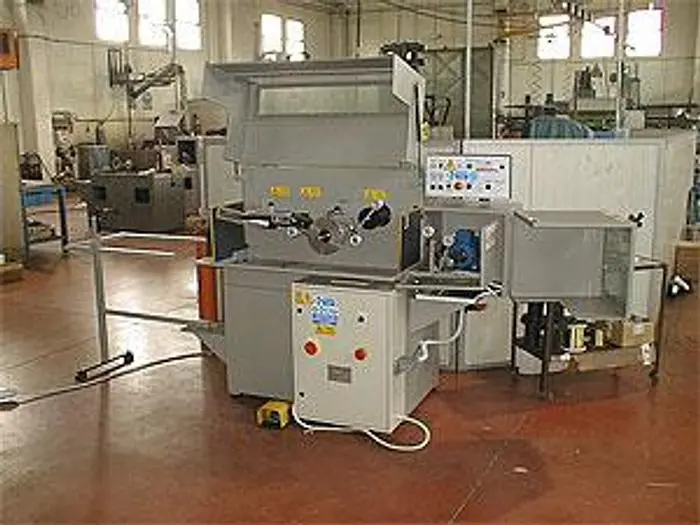

Special multiple passages wire-drawing machine with a particularly efficient clutch for drawing big wires and capillary wires. For capillary wires can be utilized a suitable coil winder. A perfectly electronic control system with digital visualizator allows to obtenir the finest winding operation according to the type of thread. Constant thread tension adjustable and regulator of the spacing pitch. The machine has foot-control selectable for die-plates inserting, rotating protection on the coilers and standards control (continuous with low protection and foot-control with high protection).
Technical Data:
max diameter wire input 0,30, minimumdiameter wire output 0,06 mm,
drawing speed max 550 mt/min., coils max diameter 120 mm,
minimum uncoiler diameter 65, coils max width 130 mm,
complete with sensor for end wire and breaking,
sensor for end coil with photocell, lubrication system with recirculation,
electronic management of working parameters
Notes:Construction standards in accordance to “CE” with respective documentation.
Installed horse power 5 KW.
Power supply 380 V. 50 HZ. Three-phase + N.
Accessories:
Sensors for check wire and winders.

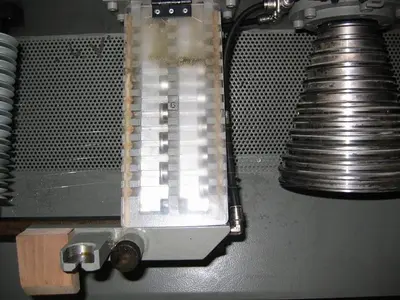

Complete set of diamond dies (your initial and final sizes to inform us).
Litres 10 emulsifiable oil.
Tungsten carbide coiler.
Dimensions:
Length 1900 mm
Width 900 mm
Height 1390 (1900) mm
Approx Weight 550 kg
