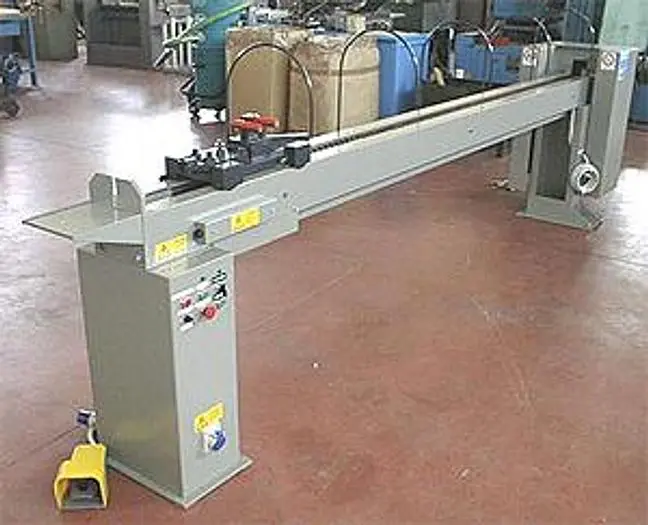

NEW TVN/Goldpro® Mod. TK 15/EX Chain wire-drawing machines 1500 kg drawing power
Overview
Description
Linear chain wire-drawing machines with useful drawingwork length variable on request (5 mt. about standard), for drawing wires of overage dimensions, for rounding out plated plates, etc.
Driving gears in oil-bath, carriage with special closure, automatic carriage return with limit stop.
Standard protections on the working place. Construction standards in accordance to “CE” with respective documentation.
Total installed horse power 2,6 KW.
Power supply 380 V. 50 HZ. Three-phase.
Dimensions:
Length 5 mt us.=6000 mm
Width 600 mm
Height 1400 mm
Approx.Weight 450 kg
Options
Double speed
Electronic variation of speed.
Machine in two separate parts to facilitate the carriage.
Lubrication on the wire-drawing plate with recirculation system.
Works plan with adjustable height.
Counter stretcher for pipes.
Chamfering equipment for plate.
Frame for anchorate pin.
Winder for output wire.
Useful length 7/9/11 meters on request.
