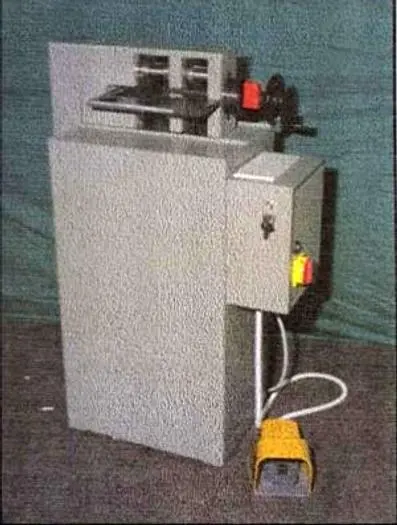

NEW TVN Mod. CR/9 Registable shearing machine, 1,5mm thickness
Overview
Description
Motorized machine complet of support bank, entirely made in steel for cutting plates up to 1,5 mm thickness.
The solid structure and the particular technical solution confer to the machine characteristic of high precision, stability and big versatility.
It has a support plan with micrometric regulation through a joystick and visual display with direct reading of nonius for giving to the machine high cutting precision. The shears diam. 90 made in special steel for giving to the shear much resistance to the usage. Adjustable width from 4 to 90 mm. Reversing. March with pedal.
Installed horse power on Motor-reducer CV 1,5 with motor protector and fusibles.
Power supply 380 V. 50 HZ. Three-phase.
Dimensions:
Length 600 mm
Width 350 mm
Height 1050 mm
Approx. Weight 130 kg
Options
Plate winding device € 1.960,00
Unplate device € 850,00
Electronic variation of cutting speed € 1.700,00
Complete set of four spare blades for shearing machine CR/9 CR/9 € 1.715,00
Frictioned downcoiler € 1.604,00
Drivers with rubber cover in two parts (width to establish each) € 506,00
Availability:
Ex-Factory, Italy
