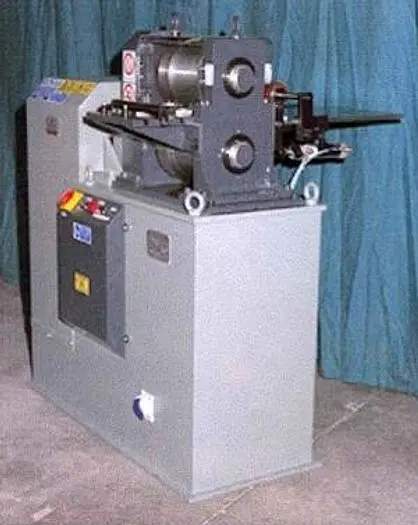

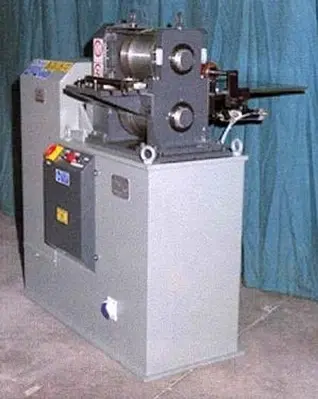

NEW TVN Mod. CP/22 Multiple cuts circular shearing machine, 4mm thickness

This machine can shear plates up to 4 mm thick, with high precision on the width.
The available space for shearing is 250 mm, scrap shears included.
The possibility to replace the shearing blades group holder with scrap shears assure a great versatility of the machine. The shears diameter is 220 mm.
The plate is drawn by special rubber spacers. Cutting speed 11 meters per minute.

Construction standards in accordance to "CE" with respective documentation.
Installed horse power 3 KW.
Power supply 380 V. 50 HZ. Three-phase.
Dimensions:

Length 1210 mm
Width 500 mm
Height 1550 mm
Nr 1 plate-cut € 1.322,00
Nr 2 plate-cut € 2.645,00
Availability:

Ex-Factory, Italy
