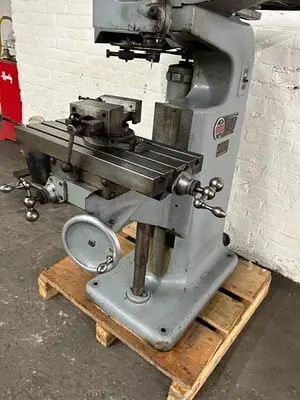

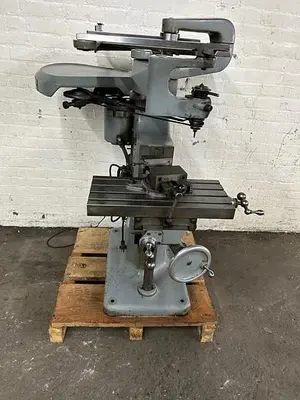

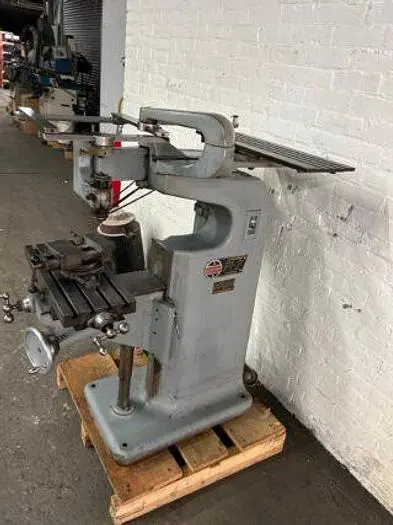

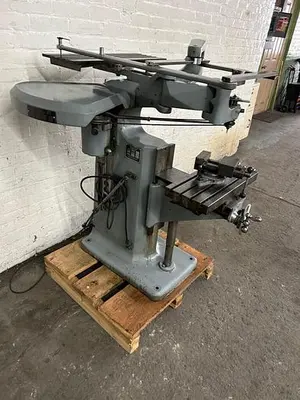

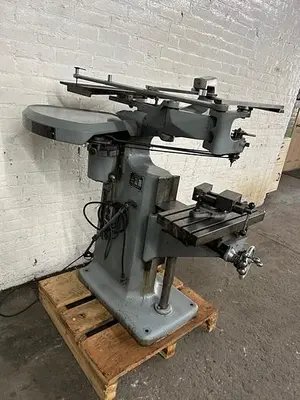

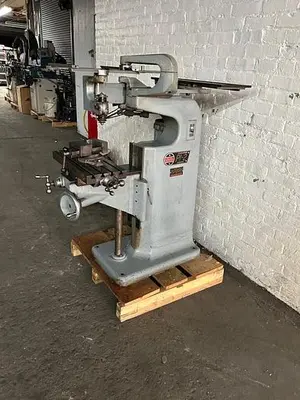

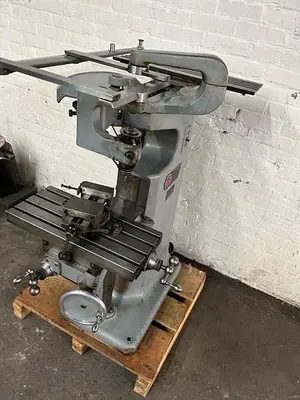

5283-330 Gorton 2-Dimensional Pantograph / Engraver Model P1-2, with Swivel Vise

5283-330 Gorton 2-Dimensional Pantograph / Engraver Model P1-2, with Swivel Vise

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Engravers
Stock #:
5283-330
Description

115V/1PH/60HZ
(8) Spindle speeds, range:
4700 to 18,000 RPM
Equipped With:

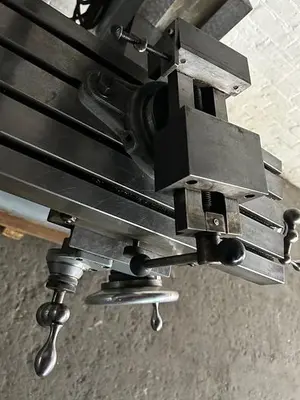

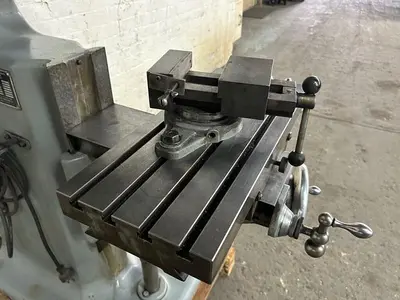

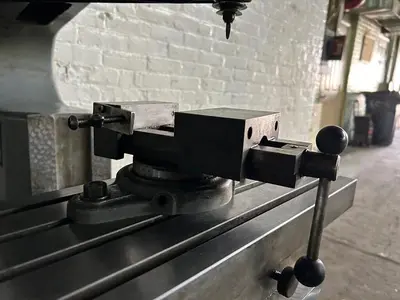

Swivel vise
Cast iron base
Work light
Recently taken from service from a local tool and die shop offered in excellent condition!

Specifications

Table working surface: 8" x 18"
Table dimensions, overall: 8-7/8" x 24"
Longitudinal feed capacity: 10"
Cross feed capacity: 8.75"
Vertical spindle feed: .31"
Vertical knee feed: 11.125"
Copy table cross movement: 5"
Slider head cross movement: 7.25"
Throat opening above column ways: 8"
Swing above column ways, maximum: 21"
Spindle nose to table, maximum: 11.625"
Spindle nose to table, minimum: 0"
Motor: 1/4 HP
Overall dimensions: 35" x 42" x 48" high
Estimated weight: 640 lbs.
