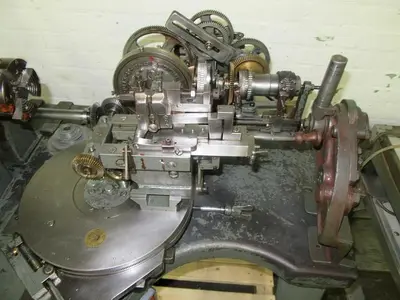

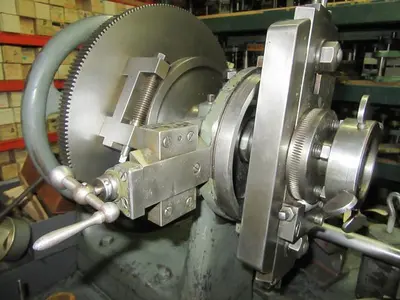

3382-385 Antique RA LIENHARD SUISSE Chaux-De-Fonds Horizontal & Vertical Rotary Engine TURNING / BROCADING MACHINE

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.

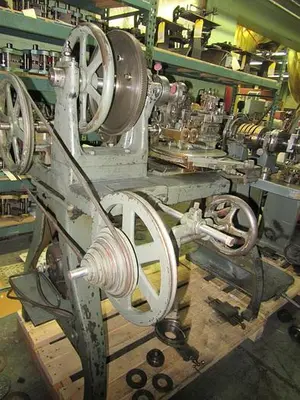

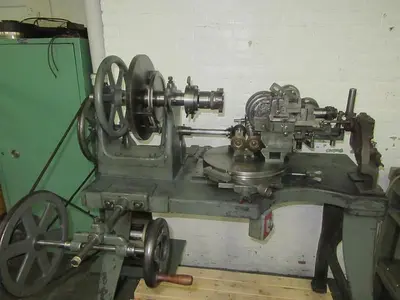

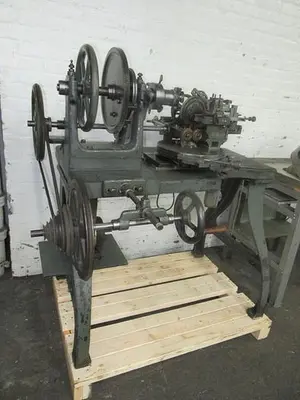

3382-385 Antique RA LIENHARD SUISSE Chaux-De-Fonds Horizontal & Vertical Rotary Engine TURNING / BROCADING MACHINE

3382-385 Antique RA LIENHARD SUISSE Chaux-De-Fonds Horizontal & Vertical Rotary Engine TURNING / BROCADING MACHINE

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Brocading Machines
Stock #:
3382-385
Description

Manual Operation by Hand Wheel or with Optional belt driven motor connection

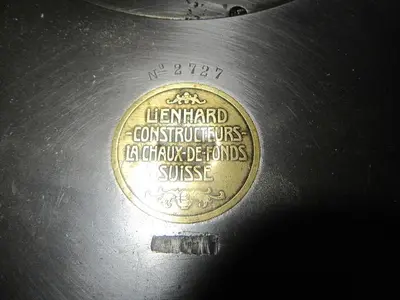

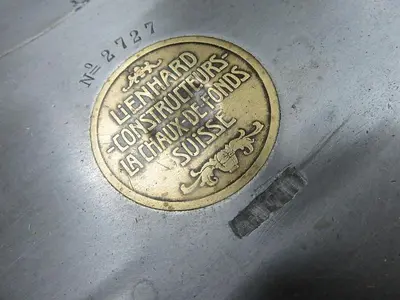

S/N   # 2727

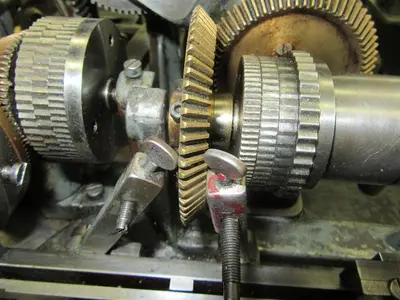

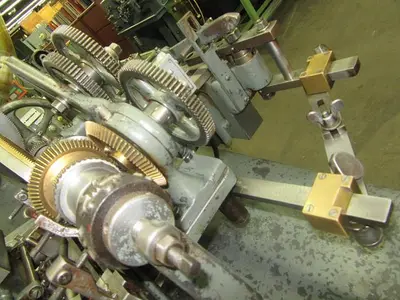

Gear driven
Center height 8 1/2"

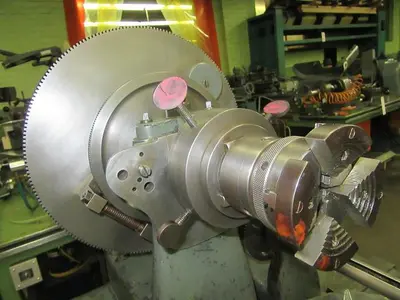

MAX Chuck 2½" opening

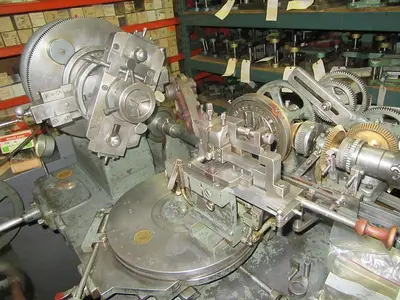

100 degree rotary base for tool post & cutter
Cast Iron Construction
estimated weight  1485 LBS
Equipped With:

7 Pattern wheels

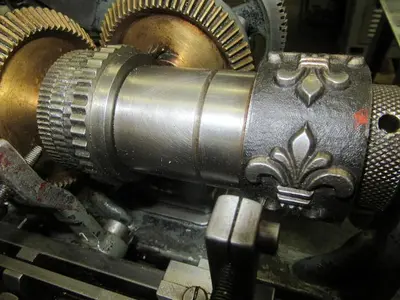

Master Bracelet Pattern Roll
Vertical Brocading Attachment with 5½" Diameter
Horizontal Brocading Attachment 2 1/2 Diameter
tool post & cutter
complete change gear attachment

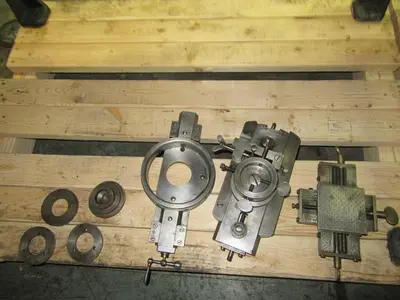

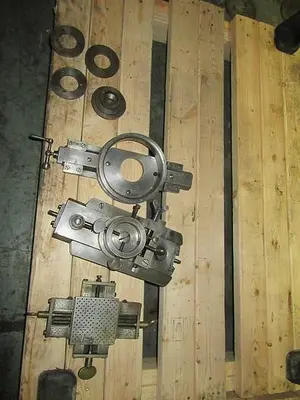

Round & Oval attachment
Chuck with 2 " diameter for work piece
Flat chuck attachment With assorted work holders /hold downs

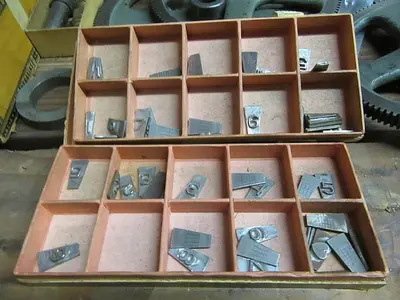

Full Lettering set

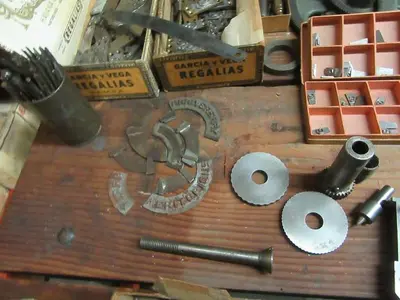

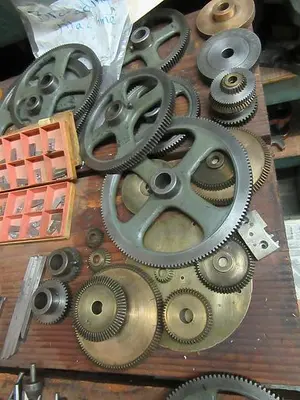

complete set of original change gears
original paper work from previous owner
Examples of Straightline Turning

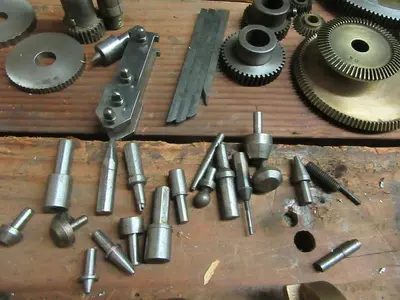

Assorted cutting Tools

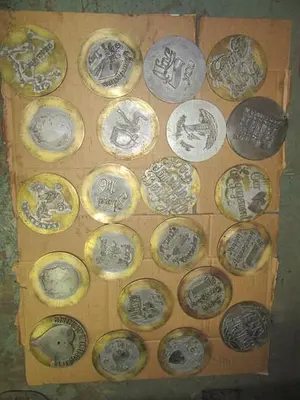

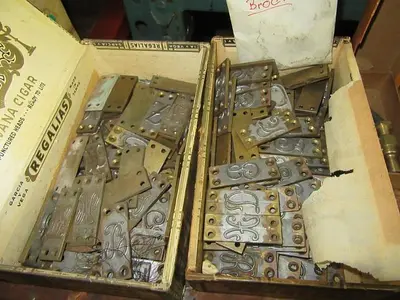

22 brocading plates (see photo)
Oval attachment & Chuck with 2 " diameter for work piece

Brocading-copying, duplicating and reducing- is a method by machine utilizing decorative and commemorative design plates to reproduce designs from master design plates to medals, coins, brooches, medallions, bracelets, pendants and a plethora of jewelry and award products in metal, plastics, etc.
This machine is loaded with tooling and accessories, notes, etc as taken from service from the Lindsay & Co in NYC - owners retired. Client list included Tiffany, Yurman, Etc...high end and quality precious metal work for trade since 1943.

Click to view Handwritten Notes With Machine:
https://goldmachinery.com///wp-content/uploads/2017/06/BROCADING-ENGINE-TURNING.pdf

See our available brocading plates & rolls in stock:

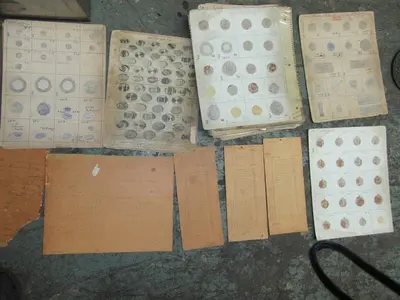

SAMPLES OF WORK:

Specifications

Swing: 17 " Diameter
Size: 55" x 48" x 55"h
