208V/3PH/60HZ
25 AMP
Cooling water pump with tank
Optional with crucibles C35 & C65
For crucible KR 114/117
Equipped With:
Temperature control
Cycle timer
Natural - Vacuum - Inert
Electrical schematic & Operations manual
THIS MACHINE IS BEING LISTED AS A PARTS MACHINE ONLY - NOT CURRENTLY OPERATIONAL
MANUFACTURER WEBSITE:
http://www.manfredi-saed.it/

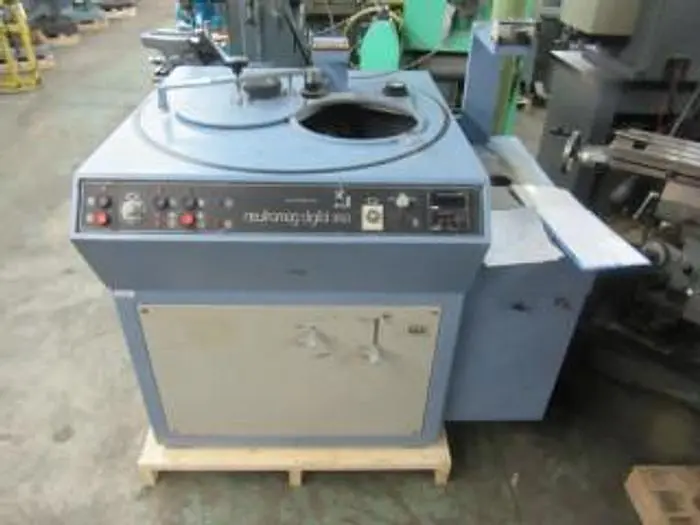

NEUTROMAG DIGITAL
DENTAL, JEWELRY, INDUSTRIAL
Top quality and heavy duty work are the chances given by this machine. Thanks to its versatility Neutromag Digital can melt and cast any gold alloys of any karat, silver, platinum, and many other non precious alloys with the choice of the most suitable environment condition between natural, vacuum or neutral atmosphere.
CATALOG PHOTO:
AIH manufactures induction melting systems to satisfy a broad range of applications, from ferrous to non ferrous melting. Our solid state power supplies are available from 10kw to over 300kw output power.
This ideally suits small to medium sized melting shops, being versatile and reliable at minimum operating costs and maximum operating efficiencies.
AIH induction melting systems are utilized for the production of ferrous and non ferrous castings for the following industries:
Automotive
Construction
Precious metal refining
Rail products
Agricultural
Aerospace
Marine
R & D laboratories
A side melter has been added to allow static melting upto 150cc of volume (for NEUTOR 150F) and 350cc of volume (for MAGNUM 350F & NEUTROMAG 350F).
The temperature control reader can be moved from the centrifugal side to the static one simply with a clip.
Maximum melting capacity: 350 cc (6.6 kg 24 kt gold)
Melting time: 5 kg of 24 kt gold in 12 minutes
Max. casting capacity: 350cc (6.6kg 24K Au)
Casting time: 5kg (3215pwt) of 24K gold in 12 minutes
Max. consumption: 9,1kW
Available crucibles: CC350s - CG350s - CG350sXQ
For crucible size: 60 /150
Overall dimensions: 53" x 41" x 52" high
Estimated Weight: 592Kg (1305lb)
