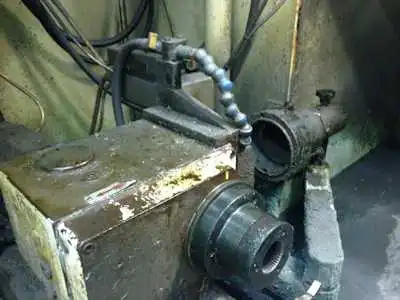

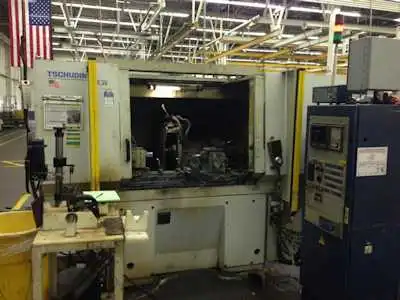

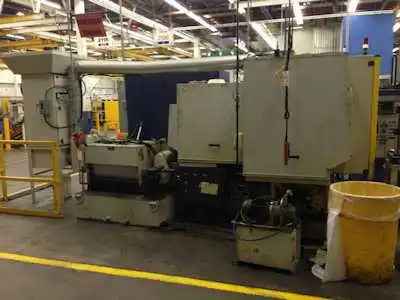

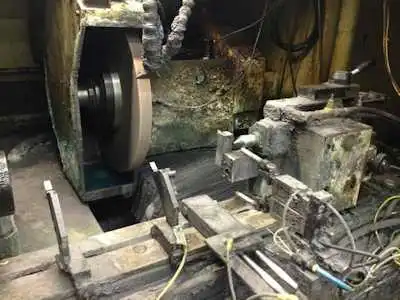

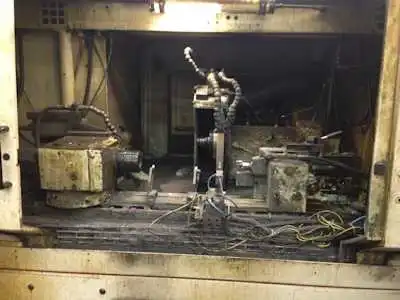

USED 1999 TSCHUDIN PL66
Overview
12" x 28" MODEL PL66 TSCHUDIN CNC CYLINDRICAL GRINDER,1999
Specs
Specifications:
Distance Between Centers: 650mm
Center Height: 150mm
Grinding Length: 650mm
Max. Diameter of Grinding Range w/New Wheel: 298mm
Min. Diameter of Grinding Range w/Worn Wheel: 1mm
Grinding Wheel Diameter: 600mm
Standard Wheel Width: 120mm
Motor Power: 15 kW
Grinding Wheel Peripheral Speed: 45 m/s
X-Axis Wheelhead Slide Travel: 340mm
Max. Travel Speed: 8000 mm/min
Least Input Increment: 0,0001 mm
Resolution: 0,0001mm
Swivelling Range: +30/-45 deg.
Speed Range: 20-1000 rpm
Z-Axis Table Travel Slide: 950 mm
Max. Travel Speed: 8000 mm/min
Least Input Increment: 0,0001 mm
Table Swivelling Range: +9,0/-9,0 deg.
Approx. Machine Floor Space LxWxH: 115" x 98" x 82"
Approx. Control Box 1 Dimensions LxWxH: 84" x 25" x 85"
Approx. Control Box 2 Dimensions LxWxH: 25" x 21" x 80"
Approx. Mist Collector Dimensions LxWxH: 43" x 34" x 93"
Equipped With
Fanuc 16TB
2-Work Rests
Pulse Generator
Marposs Gauge P-5
SBS 4500 Balancer
Tailstock Mount
Dresser

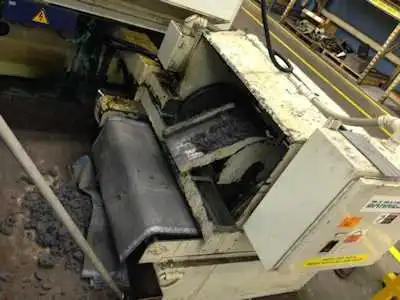

Barnes Chip Separator W/Mag & Paper Filtration
Coolant W/Mag Paper
Hydraulic Unit
Light Curtain

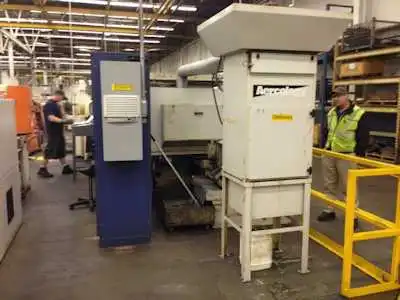

Mist Collector "Aercology McLean Midwest"
Work Light
Operators Manual
