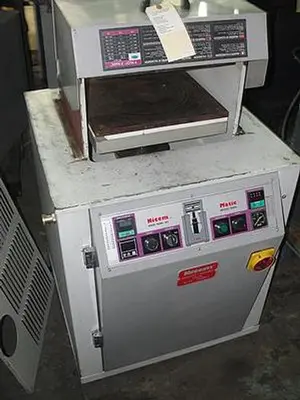

Automatic vulcanizer with heated Upper deck for the production of dies and molds in silicon rubber.
This machine features an upper deck heated by electric resistances and digital temperature regulators that control the vulcanization temperature. The road containing the mold to vulcanize is pressurized by means of a hydraulic assembly with electric pump. A timer enables to program the vulcanization cycle
It can vulcanize molds up to 400 mm
Technical Specs:
220V/3PH/60HZ
Equipped With:
Heated upper platen
Manual/Automatic controls

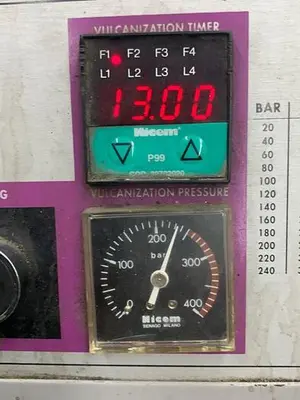

Cycle timer

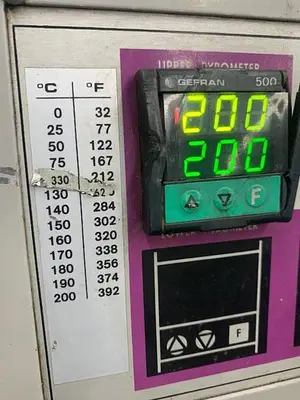

Temperature control

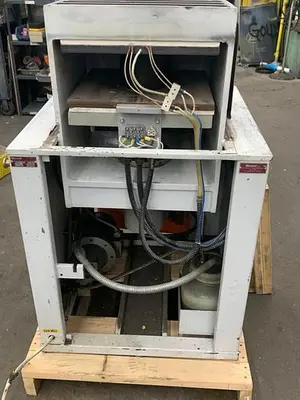

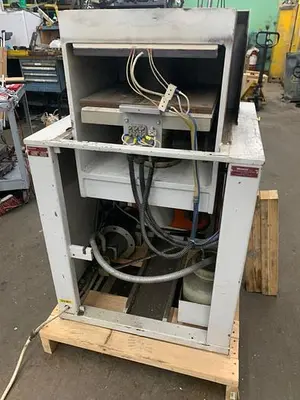

Less back panel & cover
Platen size: 16" x 16"
Machine Overall dimensions: 28" x 32" x 48" High
Crated Dimensions: 36" x 40" x 57" High
Crated weight: 1300 Lbs.
Skidded dimensions: 36" x 40" x 55" High
Skidded weight: 1100 Lbs.
