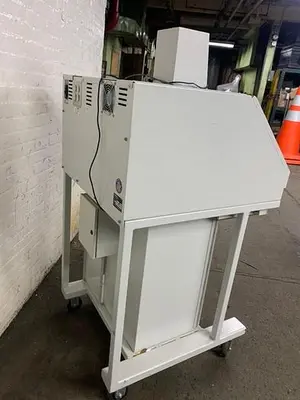

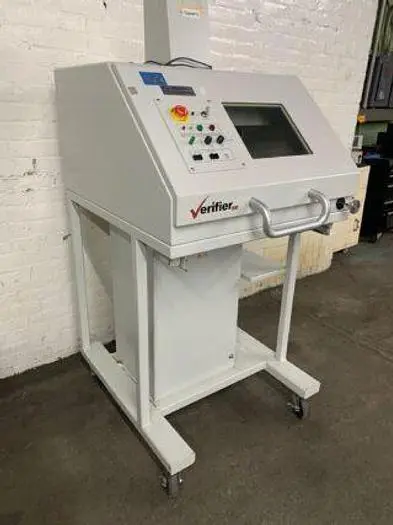

Focal Spot Verifier HR FXS090D X-Ray, Portable Inspection System – New 2011

The Verifier H.R. Series X-Ray Inspection Systems
New replacement cost $65K USD
Voltage 110/220 50/60cycle 1PH
Date of MFG 12/2011
Model FX090D
S/N 5139
Calibrated 10/25/22 valid until 10/26/23
16X18-inch maximum board handling
CE certified and exceeds all CDRH and FDA safety and radiation requirement
Equipped With:

Hand operated table rotation, fixture
90kV, 5 micron spherical focal spot size
Dual 4/2-inch Image Intensifier
650X magnification provides excellent imaging
About

The Verifier HR is a portable high-resolution; high-magnification x-ray system designed to address a broad range of failure analysis, quality inspection and measurement applications.The 90-kV H90 system suits applications with dense or thick materials, or that require finer-detail resolution and higher magnification. Both use a four-axis, 360° sample manipulator. The X-ray inspection systems perform manufacturing quality assessments and defect detection for components and assemblies, such as automotive sensors, castings, electronic modules, electromechanical devices, finished medical assemblies like pacemakers, and other mission-critical devices.

"X-ray technology continues to be a valuable inspection tool for new packaging technology design and development by providing critical prototype validation, quality assurance and measurement data "X-ray inspection has the advantage of being non-destructive and will provide information about the condition of the part during proto-design, post burn-in and after any environmental testing.

Note offered less CPU

About FocalSpot, Inc.

FocalSpot, Inc. is a premier provider of SMT Inspection and Rework equipment for the electronics manufacturing industry. FocalSpot designs, manufactures and markets affordable X-Ray Inspection Systems (worldwide) and exclusively distributes DEN-ON advanced lead-free rework solutions

Small footprint: Portable, 32 x 34" (813 x 864mm) easily rolled where needed
