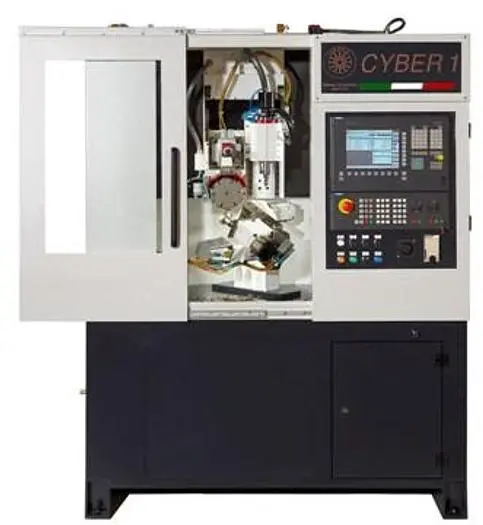

OMPAR CYBER 1 C.N.C. DIAMOND CUTTING MACHINE FOR WEDDING-RINGS AND BANGLES
Overview
Description
Diamond cutting machine Mod. CYBER 1 C.N.C. with 2 (two) in line heads and 11 controlled axes to carry out decorations and diamond milling on flat and convex rings and bangles, in automatic mode. The machine is made up with a strong stabilized structure, one horizontal head with 6-stations automatic tool-change, one vertical head made up with a 2.2KW electro-spindle with max. speed 30.000 rpm and automatic tool-change at rapid clutch with Cone ISO-20 served by a programmable 20 station tool-change magazine. The piece-holder dividing unit articulates on 5 axes. All axes are driven by brushless motors and controlled by SIEMENS-Sinumeric 840 D-SL CNC. It is complete with electric and electronic plant, pre-arranged to be equipped with CAD-CAM programme, control pannel, service spanners and spare belts, CE 2006/42 certification as per standards in force.
Technical Data:
Gross weight: Kg. 2280 Net weight: Kg. 2970
Videos:
Elements of the machine- Download
Workings and use of the machine- Download
Sample of working on 15mm bangle- Download
Sample of working on 25mm bangle- Download
EQUIPMENT:
1 Steel pincer complete with tie-rod for rings
1 Set of reductions for outside rings (22pcs.)
1 Large ornament cutter for Cyber1
1 15 Cone ISO-20 with pincer 6mm.
1 Reduction for horizontal head
1 6-tools cutter for Cyber-1
1 Centering jig/6-diamond tools holder c/w optical layer
1 Visual CAD-CAM License
1 130/3,0mm. Diamond Tool
1 150/3,0mm. Diamond Tool
1 R=2/2,0mm. Donvex Diamond Tool
1 180/4,0mm. Diamond Tool
1 4,0mm P=0,20 satin finish widia tool
1 150/3,0mm. Widia Tool
1 Widia cutter 02
1 0 20 130/3,0 widia tool
1 Multicrystal PCD point 40 R=o,20
1 60 R=0,20 Diamond Point
Availability:
Ex-Factory, Italy
Listed price subject to manufacturers price increases without notice.
Specifications
Power supply: V.400 50/60Hz. three-phase
Packing Dimensions: Cm. 185x 165 x 228(H)
