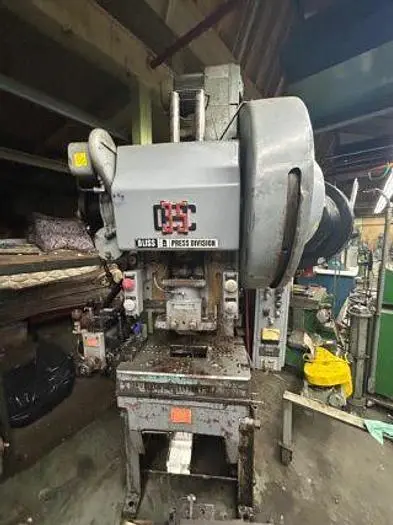

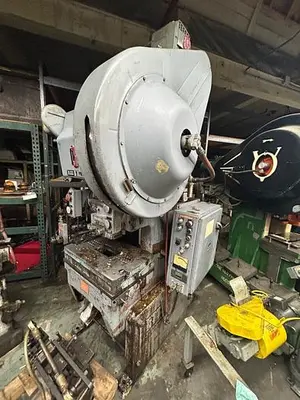

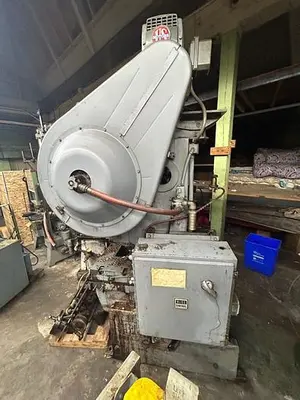

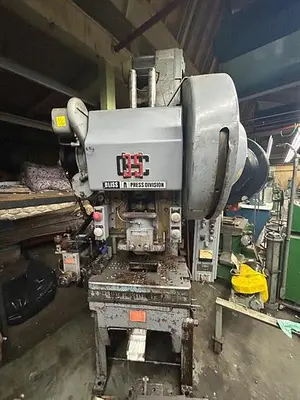

5288-230 Bliss 35 Ton OBI Single Crank Flywheel Power Press, Model CH 35 W/ 6″ Peterson Roll Feed
Overview
Stock #:
5288-230
Description
220-440 / 3PH /60 cycle
Equipped With:
Air clutch
Air brake

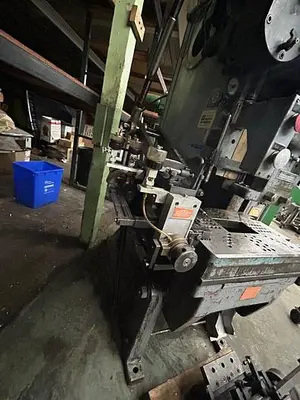

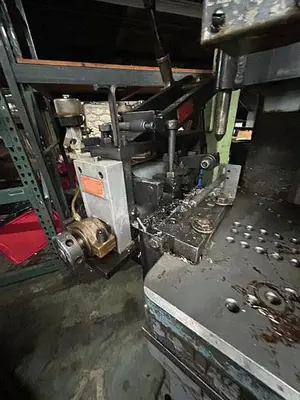

6" Peterson roll feed
Vari-speed drive
Specifications
Stroke: 1-1/2"
Rated capacity: 35 tons
Shut height: 12-1/4"
Bed size: R-L= 26", F-B= 17"
Ram area: R-L= 13", F=B= 9"
Slide adjustment: 2-1/2"
Opening through back: 12"
SPM: 100 to 300, variable
Motor: 5 HP
Overall dimensions: 60" x 60" x 80" high
Estimated weight: 5400 lbs.
