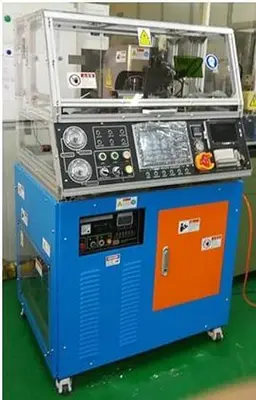

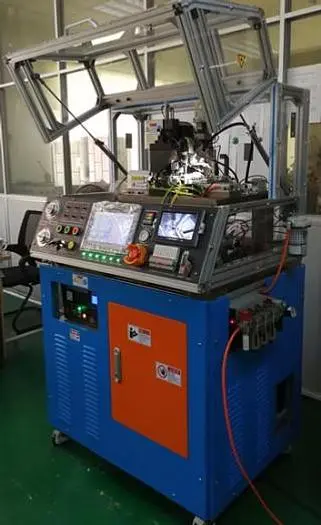

New GoldPro® Automatic Hollow Cable Chain Making with Plasma Welder Machine

Scroll Down To See Video!
Automatic Hydraulic Power Hollow Cable Chain Making Machine – with Plasma welding
( including ONE complete set Tooling )
SMC Pneumatic transmission
Panasonic Servo Motor Transmission
Mitsubishi PLC Control
MCU Control Resistance pulse plasma welding
50 L Oil Pump Station 2.2KW 3HP 1430 rpm 7 Mpa /Flow & 16Mpa/Press Multi system control
Air Cooler system
Vertical hydraulic cylinder stroke investigation X 1
Vertical hydraulic cylinder X 1
Horizontal hydraulic cylinder X 1
10 inch Touch Screen
7 inch LED Display
200 X Digital microscope
Koganei DTRY-ELL01 Electrostatic eliminator
Full automatic electrode compensation device
CE Safety protection device
Radiation Protection Goggles
Manual lifting aluminum + acrylic protective cover
Measurement 165 High X 80 Long X 110cm Width
Weight Net 680Kgs
3 OPTIONS FOR CHAIN:

1. 1.20mm Atom chain is currently in the same style as the world's smallest chain (Italy OMBI products, but no, we are one dimensional welding) is a fully automatic welding (invention patents), and because the welding causes chain,

we can make smaller specifications such as: 1.00mm, this is a global need products. With a very large potential for development.

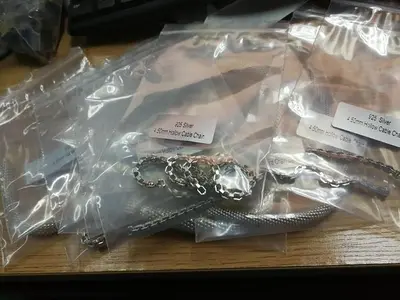

2. 2.50 - 8.00mm Hollow Cable chain, is the world's first fully automatic production equipment, products than anything on the market with the specifications of the chain of 1/3 light weight, and is a new multifunctional hydraulic power

of a process (patent), plasma welding device is used in the automatic compensation system (patent),

3. Cobra chain is currently on the market dimensional one fully automated mode, and the specifications are the smallest on the market (outside diameter 3.80mm), you can make any metal materials

Three equipment, mature technology, stable equipment, one person can control the operation of 30-50 units
OPTIONS:

Cutting Mold Complete... $485.00
Vertical Press Mold Complete with Push Device... $1,587.00
Horizontal Mold Complete... $989.00
Precision claw box... $715.00
Feeder & Push Rod & Sleeve & Holding guide... $840.00
Available Ex-Factory, China
Packing/Crating/Freight Additional

Chain Diameter: 2.50 – 8.00mm
Speed: 20 – 25 Link/min.
