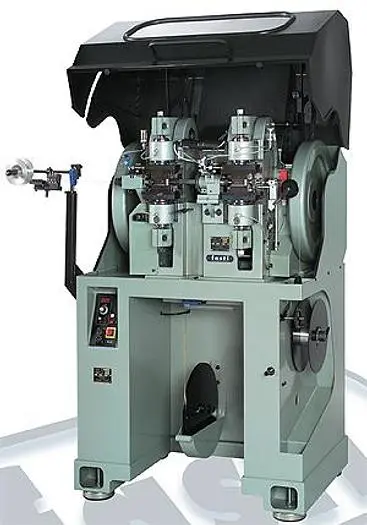

NEW GoldPro® PLL BALL CHAIN MACHINE

Machine on stand, with vary-speed, forced lubrication, wire and strip presence sensor, automatic chain collecting spool, wire straightener, without tools, in compliance with CE standards. 230V/50-60Hz single phase power supply.
Availability:

Ex-Factory, Italy
Price: € POR

Check the latest exchange rate

Listed price subject to manufacturers price increases without notice.

PL .ATN: Tested set of tools in HSS for one of the following sizes:

BALL chain, for one size from mm. 1.20 to mm. 5.00, and TIGHT
BALL mm. 3,00.
DOUBLE BALL, for size mm. 2,00. € POR
PL .ATMX: Tested set of tools in HSS for MIXED chain for one size from mm. 1.20 to
mm. 3.50. € POR
PL .ATOV: Tested set of tools in HSS for OVAL, MIXED OVAL, LOOSE OVAL,
SPINNING, LOOSE DROP and DROP chain. € POR
PL .ATBC: Tested set of tools in HSS for chain BARREL, CYLINDER and DISCO. € POR
PL .ATML: Tested set of tools in HSS for MIXED LONG chain (for PL machine, to be
used with RCM .G57 wire straightener group) for one of the following sizes:

1×4 one ball of mm. 1.50 and a barrel four times long.
1×4 one ball of mm. 2.50 and a barrel four times long. € POR
PLL .ATSFC: Tested set of tools in HSS for MIXED LONG chain (for PL machine, to be
used with RCM .G57 wire straightener group) for one of the following sizes:

1×3 one ball of mm. 1.50 and a barrel three times long.
CAMILLA 1×3, one ball of mm. 1.50 and one three times long. € POR
PLL .ATSNC: Tested set of tools in HSS for MIXED LONG chain 3×2 (for PL machine, to be
used with RCM .G57 wire straightener group) for one of the following sizes:

3×2 three balls of mm. 1.20 and a barrel two times long. € POR
PLL .ATML: Tested set of tools in HSS for MIXED LONG chain (for PL machine, to be
used with RCM .G57 wire straightener group) for one of the following sizes:

1×7 one ball of mm. 1.50 and a barrel seven times long.
3×7 three ball of mm. 1.20 and a barrel seven times long.
4×7 four balls of mm. 1.20 and a barrel seven times long.
2x2x7 two barrels (two times diameter long) of mm. 1.20 and a
barrel seven times long. € POR
PLL .ATMLSP: Tested set of tools in HSS for MIXED LONG chain (for PL machine, to be
used with RCM .G57 wire straightener group) for one of the following sizes:

4×7 four balls of mm. 1.00 and a barrel seven times long. €POR
PLL .ATS: Tested set of tools in HSS MIXED LONG chain (for PL machine, to be used
with RCM .G57 wire straightener group) for one of the following sizes:

3×4 three ball of mm. 1.50 and a barrel four times long.
3×7 three ball of mm. 1.50 and a barrel seven times long. €POR
PL .ATAR: Tested set of tools in HSS for PEANUT chain mm. 3.00 and CLEO chain mm.
3.50. € POR
PL .G41: Binocular attachment group. € POR
RCM .G57: Wire straightener group (only for PL machine). € POR
IMB .STAND: Standard packing. € POR
IMB .TROP: Tropical packing. € POR
