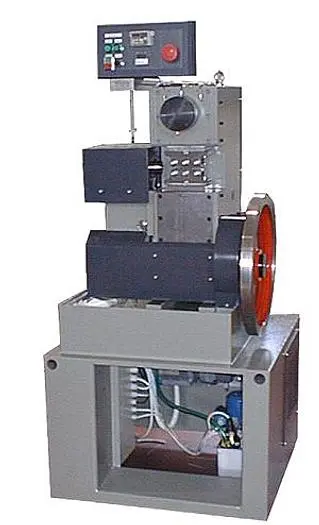

NEW GoldPro® Balls Machine Model FB18 AUTOMATIC BALL MACHINE, TWO HOLES, MAX 55 BLOWS/1MIN’, DIAM. 8 – 18
Overview
Description
The FB18 Machine for individual balls from tube has been suitably studied to obtain a production in continuous.
Machine studied and constructed by using tecniques and components that allow their interchangeability years later also.
Replacement and setting up of equipments is simple and fast.
The FB18 machine is supplied complete with silent cabin realized according to the regulations in force.
Equipped with:
Forced lubrication
Safety devices
Fixed and movable protections to
assure the security of the operator man.
Technical Data:
Max diameter of balls 18 mm.
Min. diameter of balls 8 mm.
Production 55 balls/1 min’.
Installed horse power 1,5 KW.
Power supply 220 V. 50/60 HZ. 3PH.
Dimensions:
Length 900 mm
Width 850 mm
Height 1800 mm
Approx.Weight 750 kg
Tools
List of new sizes available….
Availability:
Ex-Factory, Italy
Price: €POR
Check the latest exchange rate
Listed price subject to manufacturers price increases without notice.
Specifications
Couple of dies 14 mm (sizes of holes at request): €POR
Couple of dies 16 mm (sizes of holes at request): €POR
Couple of dies 18 mm (sizes of holes at request): €POR
Couple of pliers for tube (elastic): €POR
Couple of die holder completely grinded with fixed shoulder: €POR
Balls diameter: from hole to hole Thickness tube
1.80: 0.70 0.80 0.19
2.00: 0.80 0.90 0.21
2.20: 0.90 1.00 0.21
2.50: 1.00 1.20 0.22
3.00: 0.80 1.50 0.24
3.50: 0.80 1.80 0.24
4.00: 0.80 2.00 0.24
4.50: 0.80 2.10 0.28
5.00: 1.00 2.50 0.28
6.00: 1.20 3.00 0.33
8.00: 1.50 4.00 0.40
10.00: 1.70 4.20 0.45
12.00: 2.50 5.00 0.50
14.00: … 3.00 0.60
16.00: … 3.20 0.60
18.00: … 3.50 0.65
Packing: €POR
Couple of dies 10/12 mm (sizes of holes at request): €POR
