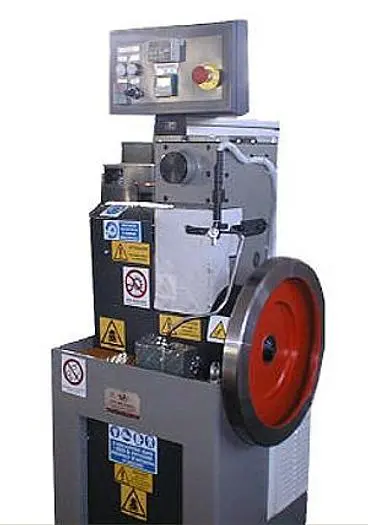

NEW GoldPro® Balls Machine Model FB5 AUTOMATIC BALL MACHINE, TWO HOLES, MAX 180 BLOWS/1MIN’, DIAM. 2 – 5,5

The balls Machine FB5 has been constructed to produce individual balls from tube or from plate.
Suitably studied to obtain a continuous production.

Automatic machine with high speed, equipped with safety devices both to avoide the production of faulty balls, and the security and physic integrity of the operator man.

The adjustment of tool is very simple and fast thanks to some registers that simplify this work.
The components of balls machines are easily interchangeables, made by control machines, both initially and finally tested.

Forced lubrication on all wear points.
Min. diameter balls 1,50 mm.
Hole from 0,5 to 0,8.
Max diameter balls 5,5 mm.
Hole from 1 to 2.
Plate thickness 0,15-0,38.
Plate width 4,70-17,5 mm
Max 180 balls/1′.
Installed horse power 1.5 KW.
Power supply 220 V. 50/60 HZ. 3PH.
Technical Data:
Dimensions:

Length 500 mm
Width 600 mm
Height 1800 mm
Approx.Weight 380 kg
Accessories:
Couple of dies 2/3 mm (sizes of holes at request) …€POR
Couple of dies 4/5/5,5 mm (sizes of holes at request) …€POR
Couple of dies for oval, drop, tear, bone, pearl, square …€POR
Couple of dies 4/5/5,5 mm (sizes of holes at request) …€POR
Couple of dies wire forming . …€POR
Couple of pliers for feed …€POR
Couple of die holder completely grinded with fixed shoulder …€PORe
Outgoing aspiration for extracting balls
…€POR
List of new sizes available….
Availability:

Ex-Factory, Italy
Price: POR
Plus packing & cratings

Check the latest exchange rate

Listed price subject to manufacturers price increases without notice.

Balls diameter: from hole to hole Thickness tube
1.80: 0.70 0.80 0.19
2.00: 0.80 0.90 0.21
2.20: 0.90 1.00 0.21
2.50: 1.00 1.20 0.22
3.00: 0.80 1.50 0.24
3.50: 0.80 1.80 0.24
4.00: 0.80 2.00 0.24
4.50: 0.80 2.10 0.28
5.00: 1.00 2.50 0.28
6.00: 1.20 3.00 0.33
8.00: 1.50 4.00 0.40
10.00: 1.70 4.20 0.45
12.00: 2.50 5.00 0.50
14.00: … 3.00 0.60
16.00: … 3.20 0.60
18.00: … 3.50 0.65
