Machine Features:

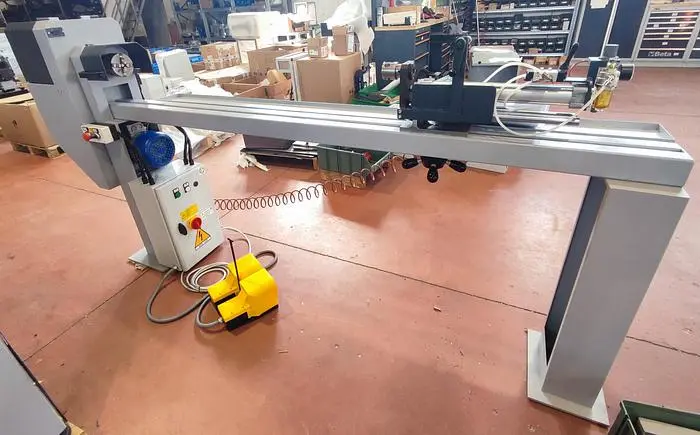

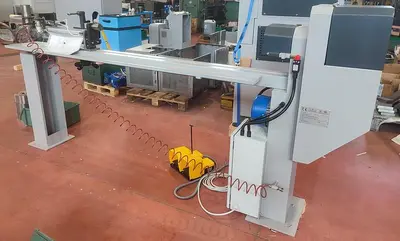

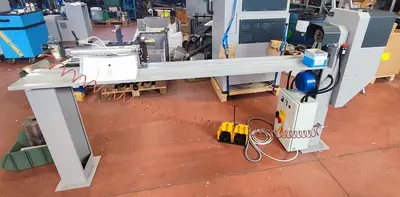

Machine made for twisting any type of chain thanks to the following features:

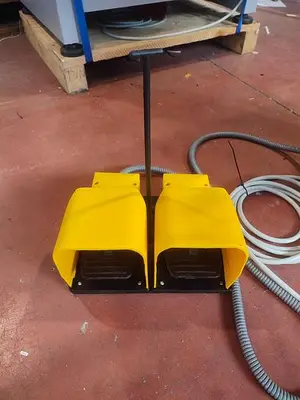

Chuck rotation in both senses from 0 to 400 r.p.m., foot-pedal control.

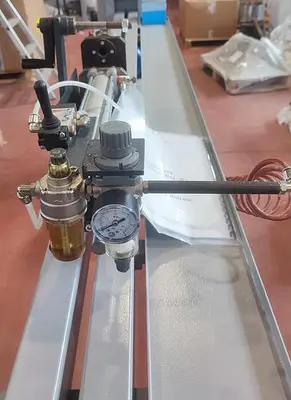

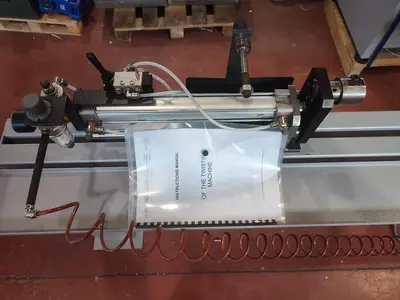

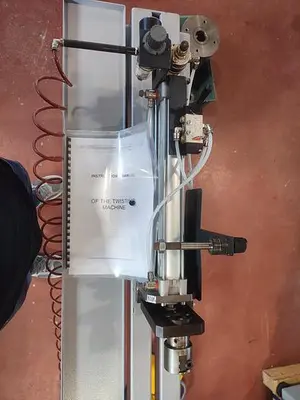

The chain can be drawn by pneumatic piston adjustable under pressure according to the kind of chain.
Adjustable distance between the two chucks from 0 to 1500 mm. (on request different)
Zero setting revolution counter.
There is the possibility for linear twisting of chains from coil.
Construction standards in accordance to “CE” with respective documentation.
Technical:
8 ATM
DOUBLE PISTON FOR DOUBLE FORCE
ADJUSTABLE LENGTH OF CHAIN TORQUE SECTION 0 / 1.5 MT.
SPEED VARIATION.
0/400 RPM
FOOT CONTROL INCLUDING TACHOMETER.
Electrical Requirements: Upon Request
Length Useful: 1.5 Meters
Max Traction: 100 Kg
