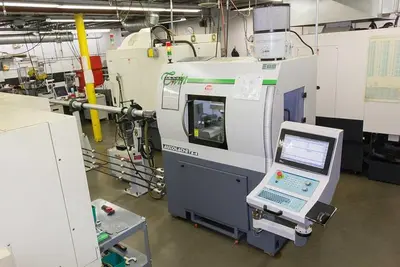

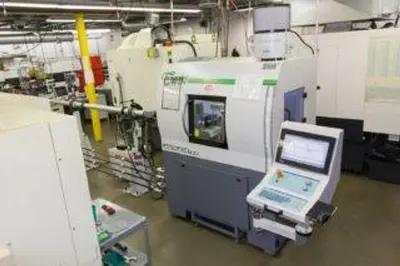

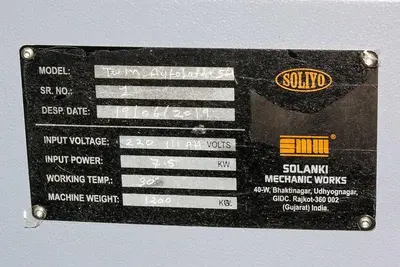

Manufactured by - Solanki Mechanic Works
Work capacity:
X-axis 175mm
Y-axis 120mm
Z-axis 110mm
B-axis 190DEGREE
Z1-axis 220mm
Z2-axis 200mm
Work feed:
X- Axis 0-8000mm/min
Y- Axis 0-8000mm/min
Z- Axis 0-8000mm/min
B- Axis 0-20000mm/min
Z1- Axis 0-10000mm/min
Z2- Axis 0-10000mm/min
C1- Axis 0-600000mm/min
C2- Axis 0-600000mm/min
SP- Axis 0-360000mm/min
Adjustable with Override 0-120%
Machine actual dimension wooden box packing box
Length 1992 MM 2092 MM
Breathe 1675 MM 1775 MM
Height 2020 MM 2120 MM
Weight 878 KG 1100 KG

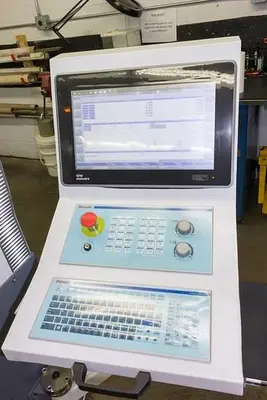

DESCRIPTION OF CONTROL PANEL:
Display
Alphanumeric keyboard (Editing/cursor key)
Machine Control Panel

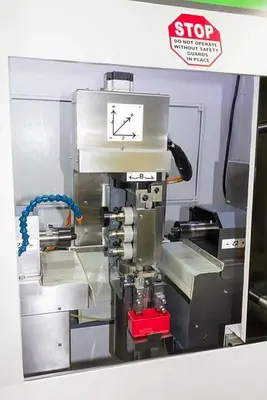

CNC automatic diamond cutting capabilities for 5mm Round, Star, Marquise, Heart, Octagon, Square and Triangle shaped items
Equipped With:

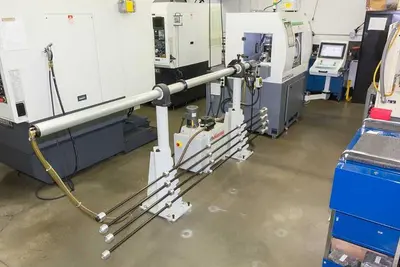

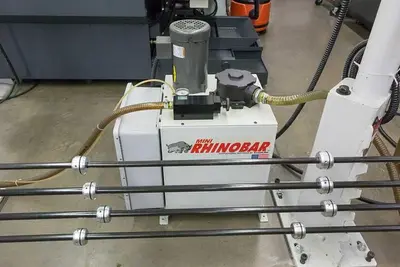

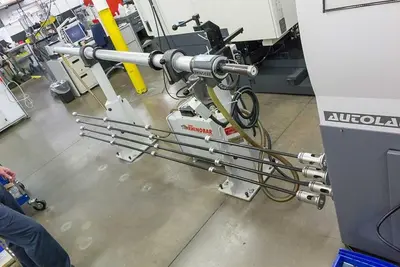

Mini Rhinobar® Model Number MRB6 1.62
Bar Diameter Range 1/8" to 1-5/8"
Maximum Bar Length 6'
Motor 1 HP / 1725 RPM
Electrics 208/220/440V, 3 phase
Overall Length 11'
Max. power required: 5 kW
Main power: 220 3 phase
MCB: 32 amps 4 pole.
Cables: 4 core 6mm from main to MCB
SPINDLE SPEED: 10000
SUB SPINDLE 1(C1): 2000
SUB SPINDLE 2(C2): 2000
Tool stake type: MANUAL
Collet type: ER-20
Frequency: 1.667 Hz
Clamping Range: Up to 10mm
