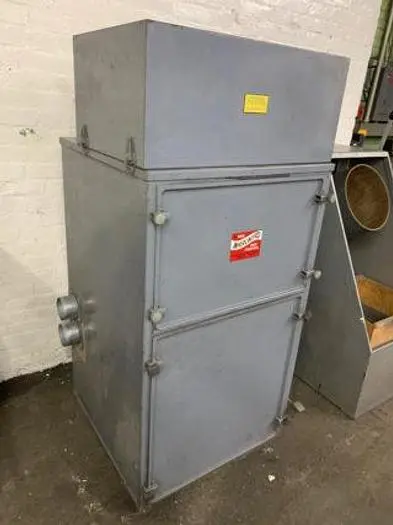

4479-550 I SHOR (Torit Type) Whirlwind Model #4, 3HP Cabinet Dust Collector With Silencer
Overview
Type:
Dust CollectorsStock #:
4479-550
Description
230V/3PH/60
S/N E-1713
Model 4 Hz
Equipped With:
Foot operated shaker system
Silencer
Specifications
CFM: 875 - 1231
External static pressure: P 7.30" - 5.00" (W.G.)
Velocity: 4460 - 6821 FPM
Inlet size: 6" diameter
Outlet size: 3-1/2" x 9-3/16"
Motor: 3 HP
Filter cloth area: 150 square ft.
Dust storage capacity: 2 cubic ft.
Overall dimensions: 28-1/2" x 28-1/2" x 48" high
Estimated weight: 380 lbs.
