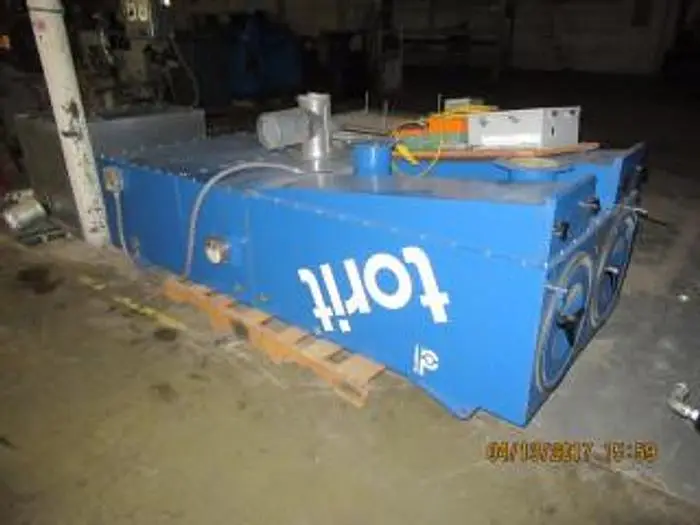

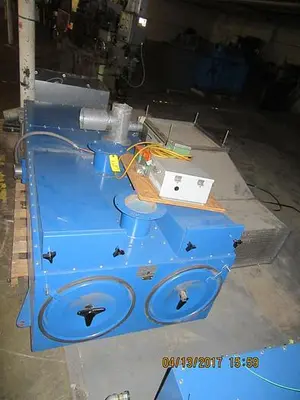

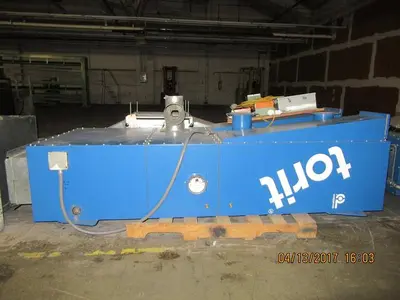

3442-550 Donaldson Torit T-2000 Fume Collector – With Hood & Blower – Welding Fume
Overview
Description
CEILING MOUNT
Equipped With:
Hood
Blower
User's Manual

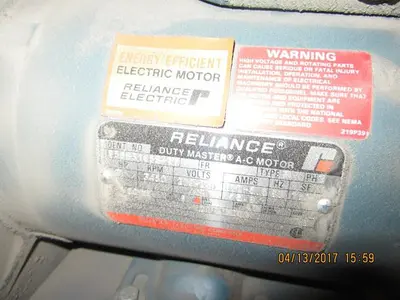

Reliance 2 HP blower 3450 RPM
Soundpack Duct silencers
Trunk 2000 (T-2000) Source Fume Collector
Designed to handle one or two welding stations using Ex-Arms.
Ceiling-mount configuration saves valuable plant floor space and provides optimum range of the Ex-Arms.
FLUENT* designed inlet and dust hopper minimizes fume re-entrainment and reduce maintenance expense.
Automatic pulse-cleaning system for continuous welding operations.
Proprietary filter cleaning system lengthens filter life.
Ultra-Web FR filter cartridges featuring fine fiber technology provide high filtration efficiency and long filter life.
MERV** 15 filtration efficiency rating per ASHRAE 52.2-2007.
Recirculation of clean air reduces need for costly make-up air.
Datasheet: Trunk 2000 Fume CollectorIOM: T-2000 Manual
Specifications
AIR FLOW: 1000 ACFM
POWER SUPPLY: 480 V 3PH
CONTROL VOLTAGE: 110 V 1PH
