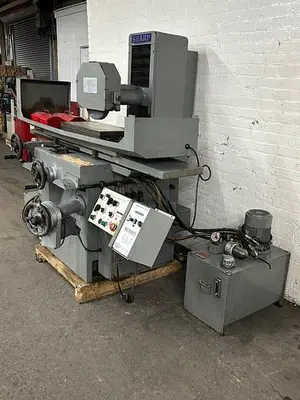

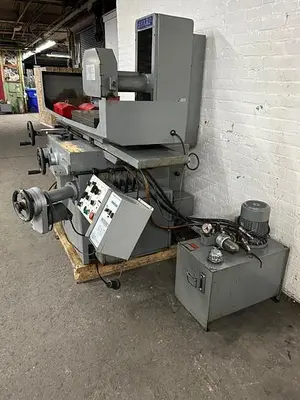

5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.

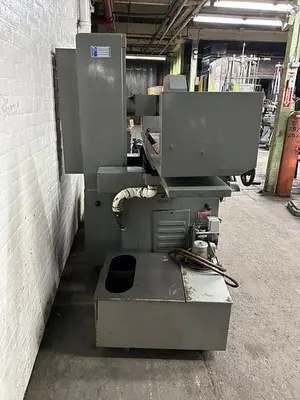

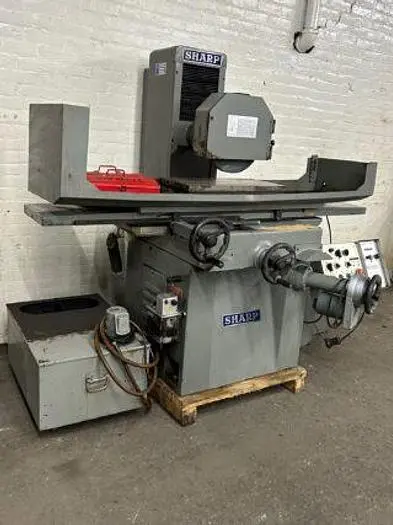

5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
  • 5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed

5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Reciprocating Surface Grinders
Stock #:
5291-420
Description

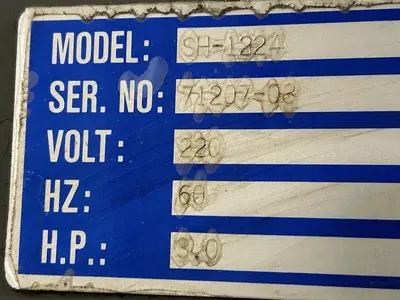

220 Volt / 3 Phase / 60Hz
Automatic Cross Feed

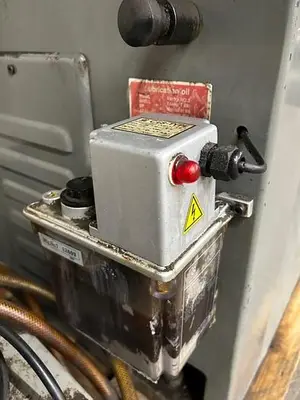

Automatic Lubrication System
Operation Type Automatic
Equipped With:

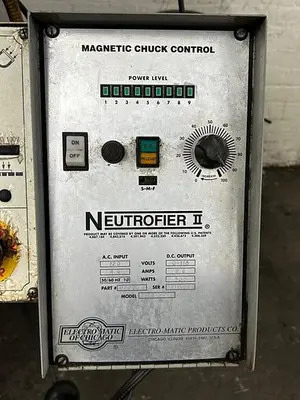

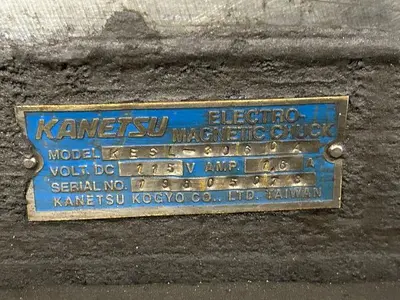

Kanetsu Magnetic Chuck And Neutrofier 11 control
Automatic Lubrication System

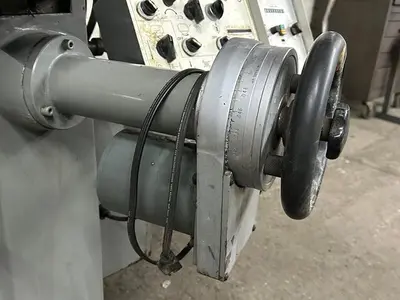

Servo driven downfeed system (Z)

Specifications

Overall Length: 24 in
Magnetic Chuck Size: 10 in x 20 in
Grinding Wheel Dia.: 14 in
Overall Width: 12 in
Max. Grinding Length: 20 15/32 in
Wheel Width: 1"
Max. Grinding Width: 8 1/8 in
Table Dimensions: 11.6 in x 23.6 in
Grinding Wheel Width: 1 in
Longitudinal Table Speed: 196 to 984 in/min
Crossfeed Handwheel per Revolution: 0.200"
Crossfeed Handwheel per Graduation: 0.0005"
Downfeed Handwheel per Graduation: 0.0002"
Longitudinal Table Travel: 18-3/4"
Spindle to Table: 19-5/16"
Crossfeed Table Travel: 6-3/4"
Wheel Bore: 5"
Downfeed Handwheel per Revolution: 0.050"
Spindle RPM: 10,000
Cross Handwheel Feed per Revolution: 0.2000 in
Spindle Center to Table Distance: 19 5/16 in
Intermittent Feed: 0.0040 to 0.4000 in/min
Longitudinal Travel: 18 3/4 in
Hydraulic Feed: 6.6 to 82 fpm
Horsepower: 3
Crossfeed Handwheel Graduation: 0.0005 in
Coolant Fed: Non-Coolant Fed
Spindle Speed: 10,000 RPM
Vertical Handwheel Graduation: 0.0002 in
Grinding Wheel Bore: 5 in
Machine Weight: 4,700 lb
