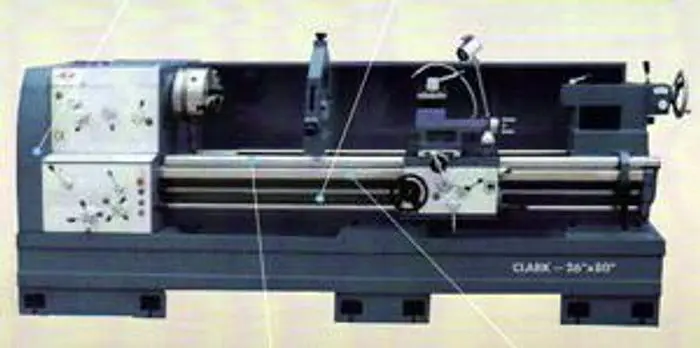

*New* Clark 26″ x 80″ Precision Gap-bed Lathe w/ DRO

*New* Clark 26″ x 80″ Precision Gap-bed Lathe w/ DRO

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Engine Lathes
Stock #:
clark26x80
Description

Capacity
Headstock
Feeds and Threads
Tailstock
Motor
Other
Standard accessories:

DRO system
3-jaw chuck
Driving plate
Center and center sleeve
Wrenches
Oil gun
Operation manual

Optional Accessories:

Steady rest
Follow rest
4-jaw chuck
Face plate
Thread dial
Longitudinal automatic trip
Live center
Quick change tool post
Taper copy ruler
4-position longitudinal automatic trip

Options:

New 20" 4-Jaw Chuck...$2250
Availability:

Ex-Warehouse, CA

Specifications

Swing Over Bed: 26" (660mm)
Swing Over Cross Slide: 18" (460mm)
Swing In Gap: 34" (860mm)
Valid Length of Gap: 11" (280mm)
Max. Length of Work Piece: 80" (2000mm)
Width of Bedways: 16-1/2" (400mm)
Spindle Nose: ISO-C11 or ISO D-11
Spindle Bore: 4" (ø103mm)
Range of Spindle Speeds/Steps: 9-1275 rpm. 18 steps (6-816 rpm. / rev.steps)
Max. Travel of Compound Rest: 4.3" (110mm)
Max. Travel of Cross Slide: 13" (325mm)
Longitudinal Leadscrew Pitch: 2 TPI or 12 mm
Section of Tool: 1-1/4" x 1-1/4" (32mm x 32mm)
Longitutdinal Feeds Range: 72 kinds 0.073-4.0666mm/rev
Cross Feeds Range: 72 kinds 0.036-2.033mm/rev
Inch Threads Range: 72 kinds 56-1/4 t/inch
Metric Threads Range: 72 kinds 0.5-112 mm/rev
Module Threads Range: 36 kinds 0.5-7mm
Diametral Threads Range: 36 kinds 56-4Dp
Dia. of Tailstock Sleeve: 3.54" (ø 90mm)
Travel of Tailstock Sleeve: 6" (150mm)
Cross Adjustment Range: 1-4" (10mm)
Power of Main Motor: 10KW / 15 HP; 15KW / 20HP
Power of Quick-Travel Motor: 250W
Power of Coolant Pump: 90W
Power Supply Applicable: 220V, 380V, 420V (50HZ, 60HZ)
Net Weight: 7716lbs (3500 kg)
Gross Weight: 9149 lbs (4150 kg)
