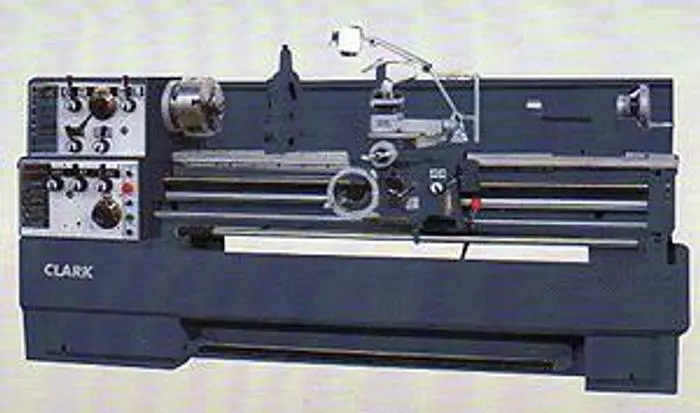

NEW Clark 16″ X 60″ Precision Gap-bed Lathe w/ DRO

NEW Clark 16″ X 60″ Precision Gap-bed Lathe w/ DRO

USD $12,900.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Engine Lathes
Stock #:
Clark16x60
Description

Capacity
Headstock
Thread & Feeds
Tailstock
Motor

7.5 HP 3 Phase
Other
Standard accessories:

DRO system
3-jaw chuck
M.T.4# dead center
Steady rest
Change gears set
Splash guard
M.T. 6/4 sleeve
Tool box with tools
Follow rest
Coolant system

Optional Accessories:

Work light
Drill chuck with arbor
Face plate
Live center
Quick change tool post
4-jaw chuck
Lead-screw guard
Index turning tools

Options:

New 20" 4-Jaw Chuck...$2250
Availability:

Ex-Warehouse, CA

Specifications
Weight4343 lbs (1970 kg)4343 lbs (1970 kg)

Swing Over Bed: 16" (410mm)
Swing Over Cross Slide: 8.8" (224mm)
Swing In Gap (Dia X Width): 25" X 9.4" (640mm X 240mm)
Distance Between Centers: 60" (1515mm)
Width of Bed: 300mm
Cutting Tool Max. Section: 1" X 1" (25mm X 25 mm)
Total Travel of Cross Slide: 11.4" (290mm)
Total Travel of Top Slide: 5" (128mm)
Spindle Through Hole: 2.28" (58mm)
Spindle Nose: D1-6 / M.T. #6
Spindle Speeds and Range: 12 Steps, 25-2000 rpm
Leadscrew Diameter & Thread: 1-1/8" (35mm) X 4 M.P.I. or pitch 6mm
Threads Imperial Pitches: 2-112 (60Nos)
Threads Metric Pitches: 0.1-14 (41Nos)
Diametrical Pitches DP: 4-112 (50Nos)
Module Pitches MP: 0.1-7 (34Nos)
Longitudinal Feeds Imperial: 0.0011"-0.0633" / rev (42Nos)
Longitudinal Feeds Metric: 0.031mm-1.7mm /rev (42Nos)
Total Travel of Tailstock Quill: 4.8" (123mm)
Taper in Tailstock Quill: M.T. 4#
Packing Case Dimensions: 110.2" x 44.1" x 66.9" (2800mm x 1120mm x 1700mm
