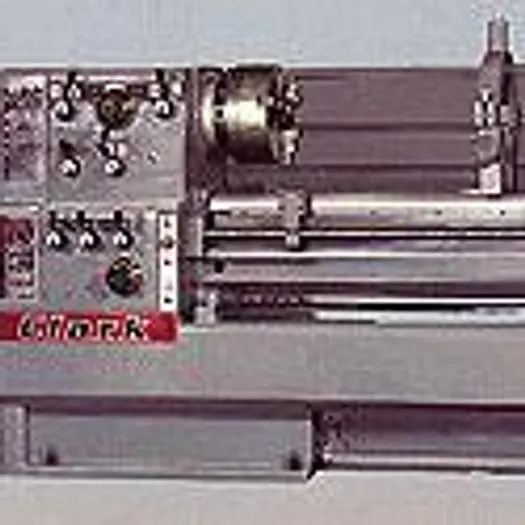

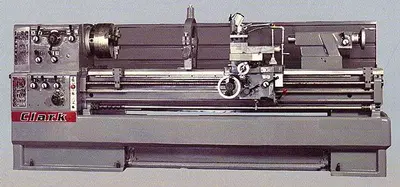

*New* Goldpro® / Clark 22″ x 80″ Geared Head Engine Lathe With Gap w/DRO

*New* Goldpro® / Clark 22″ x 80″ Geared Head Engine Lathe With Gap w/DRO

USD $19,999.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Engine Lathes
Stock #:
clark22x80
Description

Capacity
Headstock
Thread & Feeds
Tailstock
Motors
Other
Standard accessories:

This machine is ISO 9000 certified
Digital readout system
3-jaw chuck
4 Way tool post
Coolant system
Follow rest
Steady rest
Center sleeve and centers
5-position auto stop
Tools and tool box

Optional Accessories:

4-jaw chuck
Face plate
Quick change tool post
Work light
Full length splash guard
Taper turning attachment
Micrometer saddle stop

Options:

New 20" 4-Jaw Chuck...$2250
Availability:

Ex-Warehouse, CA

Specifications

Swing Over Bed: 22" (560mm)
Swing Over Cross Slide: 14" (359mm)
Swing In Gap (Dia X Width): 32" X 12" (795mm X 320mm)
Height of Center: 11" (280mm)
Distance Between Centers: 80" (2015mm)
Width of Bed: 16" (400mm)
Cutting Tool Max. Section: 1" X 1" (25mm X 25 mm)
Total Travel of Cross Slide: 13-1/2" (345mm)
Total Travel of Top Slide: 7-7/8" (200mm)
Spindle Bore Diameter: 3-1/8" (80mm)
Spindle Nose: D1-8
Spindle Morse Taper in Nose, In Sleeve: M.T. #7 X #5
Spindle Speeds and Range: 12 Steps, 20-1600 rpm
Leadscrew Diameter & Thread: 1-3/8" (40mm) X 4 T.P.I. or pitch 6mm
Threads Imperial Pitches: 4-112 (5Nos)
Threads Metric Pitches: 0.25-7 (24Nos)
Diametrical Pitches DP: 4-64 (50Nos)
Module Pitches MP: 0.25-14 (34Nos)
Longitudinal Feeds Imperial: 0.0011"-0.0316" (50Nos)
Longitudinal Feeds Metric: 0.030mm-0.850mm (50Nos)
Cross Feeds Imperial: 0.00024"-0.0068" (50Nos)
Cross Feeds Metric: 0.01"-0.286mm (50Nos)
Total Travel of Tailstock Quill: 7-5/64" (180mm)
Tailstock Quill Diameter: 2-61/64" (75mm)
Taper in Tailstock Quill: M.T. 5#
Spindle Drive Motor: 10HP
Coolant Pump Motor Power: 1/8 HP (0.1 kw)
Machine Space Required (L x W x H): 145" X 38" X 52"
Packing Case Dimensions (L x W x H): 141" X 45" X 64"
Net Weight: 6666 lbs (3030 kg)
Gross Weight: 7480 lbs (3400 kg)
