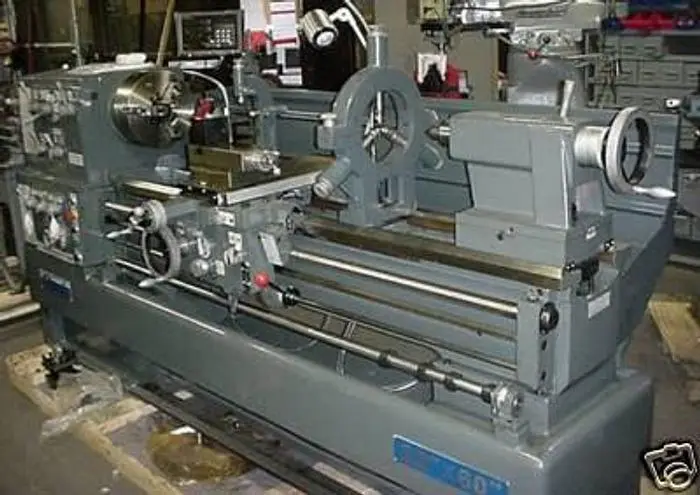

“New” Goldpro® / Clark 20″ x 60″ Geared Head Engine Lathe With Gap

“New” Goldpro® / Clark 20″ x 60″ Geared Head Engine Lathe With Gap

USD $15,475.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Engine Lathes
Stock #:
GoldProClark20x60
Description

Capacity
Spindle
Feeds and Threads

Compound Rest 75"/145mm
Tail Stock
Motor
Other
Options:

New 20" 4-Jaw Chuck...$2250
Equipped With:

This machine is ISO 9000 certified
Digital readout system
3 Jaw and 4 Jaw chucks
4 Way tool post
Quick change tool post
Coolant system
Follow rest
Steady rest
5 Position auto stop
Tools and tool box
Foot brake
Face plate
Work light
Full length splash guard

Optional Accessories:

Threading Chasing Dial
Taper Turning Attachment
Protection Screw
Tool Post Cover
Quick Change Tool Post
Tank Chains
Availability:

Ex-Warehouse, CA 45-60 Day Lead Time

Specifications
Weight5511lbs./2500kgs5511lbs./2500kgs

Max. Swing Dia Over Bed: 20"/ø500mm
Max Swing Dia Over Slide: 12"/ø300mm
Max Swing Dia Over Gap: 28"/ø710mm
Length in Gap: 9"/240mm
Max. Workplace Length: 60"/1500mm
Spindle Bore Diameter: ø4/ø105mm
Spindle Nose: D1-8
Spindle Speeds: 12 Steps 36-1600 rpm
Travel of Cross Slide: 12.5"/320mm
Lead Screw Pitches: 2TPI or 12mm
Tool Section: 1" x 1"/25mm x 25mm
Longitudinal Quick Moving Speeds: 18"/min (60Hz)
Cross Quich Moving Speeds: 7.6/min (60Hz)
Longitudinal Feeds Ranges: 0.0023-0.0937"/rev. 65 kinds (0.063-2.52mm/rev)
Cross Feeds Ranges: 0.0011-0.040"/rev. 65 kinds (0.027-1.07mm/rev)
Metric Threads Ranges: 1-1.4mm 22 kinds
Inch Threads Ranges: 28-2TPI 25 kinds
Module Pitches Ranges: 0.5-7MP 18 kinds
Diameter Pitches Threads: 56-4 DP 24 kinds
Diameter of Quill: ø3"/ø75mm
Travel of Quill: 6"/150mm
Taper of Quill (Morse): MT4
Main Motor Power: 7.5kW 10HP
Rapid Traverse Motor Power: 0.25 kW
Coolant Pump Motor Power: 0.12 kW
Packing Size: 130"x46"x71" / 3.30mx1.15mx1.80m
