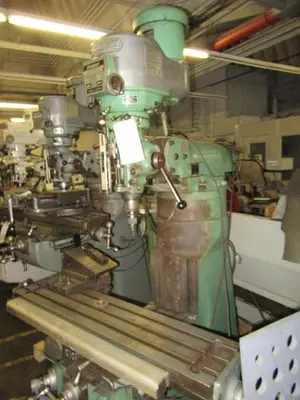

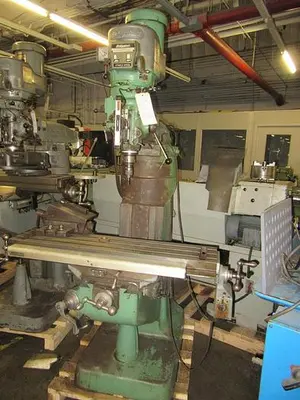

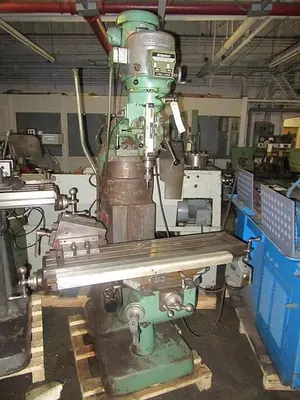

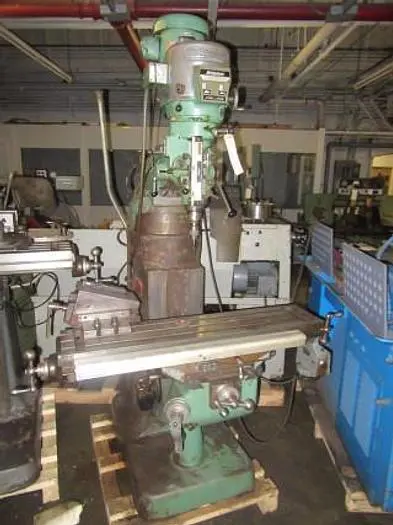

2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
  • 2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
  • 2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
  • 2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
  • 2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
  • 2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
  • 2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
  • 2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
  • 2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J

2323-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Vertical Mills
Year:
1980
Stock #:
2323-470
Description

220V/3PH/60HZ
Equipped With:
4" head riser block
Vise
Quick Switch II tool collet holder with (10) collets
Servo longitudinal table power feed
One shot lubrication system

Specifications

Table size: 9" x 42"
Table travel: 12" x 30"(12" x 26" power feed)
Vertical travel of knee: 16"
Spindle speeds: 60 - 4200 RPM, variable
Motor: 2 HP
Quill travel: 5"
Vertical capacity: 0 - 18-1/2"/0-22-1/2 with riser block
Throat capacity: 6-1/4" - 18-3/4"
Maximum work piece weight: 300 lbs.
Overall dimensions: 76" x 63" x 82" high
Estimated weight: 2180 lbs
