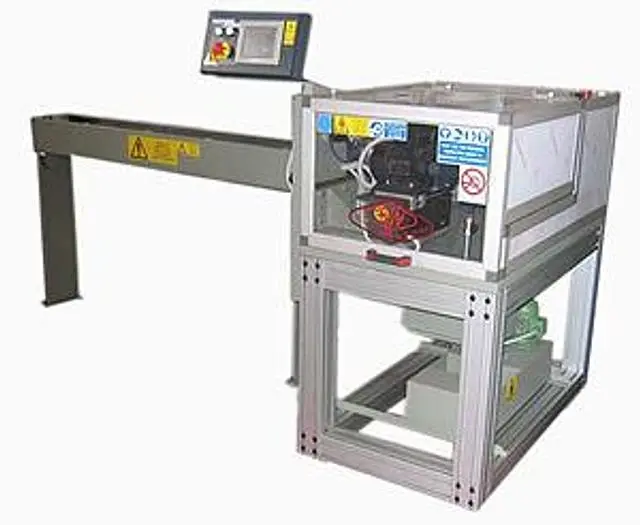

NEW TVN Automatic sawing machine for tube cutting Mod. SA/T35

NEW TVN Automatic sawing machine for tube cutting Mod. SA/T35

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Saws (Misc)
Stock #:
SA-T35
Description

The machine cuts circular tubes with maximum diameter 35 mm and variable thickness from 0,5 to 3 mm. Cutting size with precision and constancy 0,05 mm. Locking of tube by pneumatic chuck with three jaws completely automated.
Feeding of tube is made through a pneumatic pincer with two jaws with maximum cutting stroke 100 mm. Cut with circular saws in HSS or in tungsten carbide with maximum diameter 70 mm and thickness from 0,3 to 0,8 mm.
Saw chuck with oblique, precision and high speed bearings, and saw linkage diameter 10 mm. Through a control terminal “touch screen” it is possible to settle all the cutting parameters and adjust all the movements of the machine. These parameters can be called again, modified, saved and used again after years and years. Pre-setting of the cuts’ number.
Closed circuit lubrication with filings separation.
The machine has an input support with rollers and adjustment of the height to put right in the centre the tube.
Technical Data:

Dimensions:
Length 1200mm
Lenght with support 2600 mm
Width 1200 mm
Height 1300 mm
Approx. Weight kg

Notes:

Construction standards in accordance to “CE” with respective documentation

Accessories:

Suction on the cut.
Micro-lubrication.
Installed horse power 1,5 KW.
Power supply 400 V. 50 HZ. Three-phase
Serie guide per tubo 228,00 €
Series of guides for tube
Series of jaws for chuck (3 pieces) 457,00 €
Series of pinces for two pieces 257,00 €
Guide bar in entry 3.999,00 €
Circular saw diameter 63 HSS ------- €
Circular saw diameter 63-tungsten carbide ------- €
Availability:

Ex-Factory, Italy
Price: € 25.434,00
Listed price subject to manufacturers price increases without notice.

Specifications

Packing: € 331,00Check the latest exchange rate
