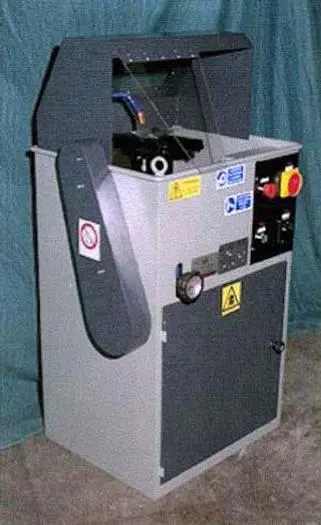

It is suitable for heavy uses on goldsmith's works and for cutting solid tubes and plates of different forms and materials. The supports on ball-bearings allow the cutting of hard materials.
The saw is assembled inside a metallic tank and protected by a plexiglas protection. Grinded and overhead table in order to replace the blades.
An emergency button and a micro switch on the lifting device assure the safety of the machine. Through pulleys is possible to change three speeds. With a lubricating system that allows the tool in working to keep his characteristics of duration and precision and the piece in working to obtenir an exact and uniform cut.
Construction standards in accordance to "CE" with respective documentation.
Installed horse power 0,33 kW.
Power supply 380 V. 50 HZ. Three-phase.
Dimensions:
Length 850 mm
Width 500 mm
Height 1000 mm
Approx.Weight 140 kg
Availability:
Ex-Factory, Italy
