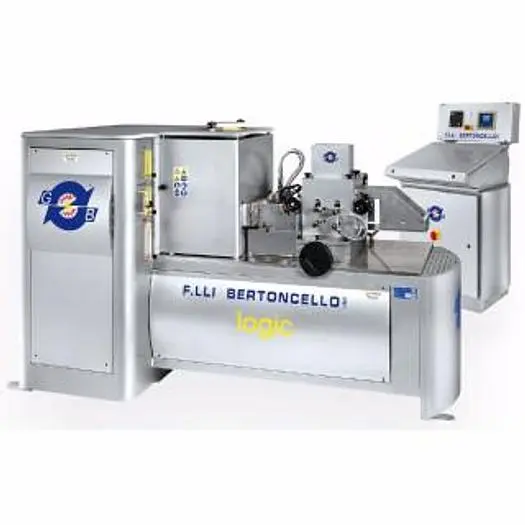

The horizontal continuous casting furnace LOGIC, with induction heating system, has been conceived to produce wires, plates, tubes and customized special sections. It is used for semi-finished products in precious alloys, in the mint industry, in the watch industry, in the dental industry and in the jewellery manufacturing in general.
The alloys normally used are:
Fine gold AU 999.9
Fine silver AG 999.9
Alloys of gold-silver and copper and other
Silver alloys in AG 925 - AG 800 - AG 500
Alloys for the watch industry
Alloys in gold-palladium and dental alloys
Soldering alloys in silver-copper, silver-zinc-copper and other.
ADVANTAGES
Crucible and die heated by two generators and two inductors, with independent regulation of power and temperature
Maximum safety thanks to the horizontal withdrawal of the material
High working speed thanks to the special cooling system of the die
Homogeneity of the metal structure thanks to the secondary cooling system by direct water contact on the profile.
High quality standard thanks to the powerful pulling system
Certainty of maintaining the plant in good condition thanks to the self-diagnosing system and possible alarms with buzzer
Possibility of placing in complete safety the pre-melting unit for a controlled casting into the holding crucible.
Protection of the melting chamber by aluminum casing easily and quickly removable to change the consumables.
Crucible, die and thermocouples quick change for short set-up time.
Pulling system with four rollers, stepper motor, closing and opening of the rollers with pneumatic control.
Silent working plant.
Control of the working parameters by PLC and touch screen video, self-diagnosing and possible alarms with buzzer.
Deoxidizing chamber of the profiles

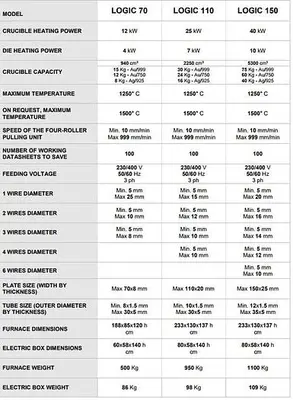

Models & Specifications:
Available Ex-Factory, Italy
Lead Time Typically 10-14 Weeks
Model Logic 70 Starting At... € 119,100.00
Model Logic 110 Starting At... € 195,520.00
Packing & Fumigated Crate.... € 1,050.00
LOGIC: the hallmark for casting
