New GOLDPRO® IECO CONTINUOUS CASTING MACHINE 15KG – FOR PLATE UP TO 100mm

TECHNICAL FEATURES
Thermocouple of the crucible directly in the bath but protected by a special sleeve – T-c connected to the PC
Thermocouple for the die connected to the PC
Special injector of gas (Argon or N2) for the internal protection of the crucible
Special injector of gas (Argon or N2) for the internal protection of the dies
Die and crucible are externally protected by a special ceramic jacket  to  avoid  a  fast  downgrading  of  the  graphite  from  the oxygen.
The furnace is equipped with a Microprocessor with a LCD display having the possibilities to change till 8 different languages
The furnace is equipped also of a printer integrated in the panel board able to print all the data of working –
The microprocessor has the possibilities to memorize till 100 different pages containing all the information concerning the material to treat – the working parameter and date.

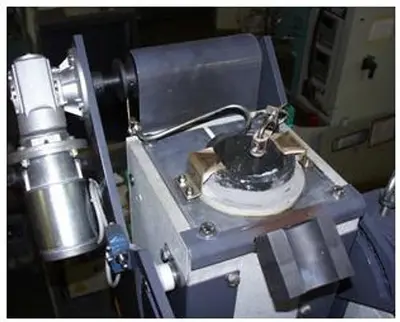

Furnace will be equipped with automatic shear installed directly on the machine( see the above pic on left side)
Special mechanical protection system for accidental casting of the metal.
Double series or rollers cooled down by water circuit
Special Cooling jacket get from a bronze block special worked that surround perfectly the die to get a better cooling efficiency.
Possibility to apply for special alloy like white or red gold alloy – a device that cool down quickly the alloy.
Technical data sheet
Extraction profiles
Aspiration for the Exhaust over the crucible:  (minimum speed required) 10m/sec;
Art.Z52-03: Induction melting furnace at medium frequency for the pre-melting of precious-metal alloys in graphite crucible, with automatic temperature control.

Equipped with a special tilting mechanical frame to allow the pre-melted metal contained in the crucible to be poured on a crucible of the continuous casting machines.

The melting head is fixed to the frame of the continuous casting and placed in the way that the pouring will be made through a remote control device.

Equipped of electronic generator of new conception, which allows:
More energetic safe with low losses;
More silences
Less encumbrance
More precision in the power control
Equipped of microprocessor controller with display at liquid crystals for the regulation and the checking of the furnace.

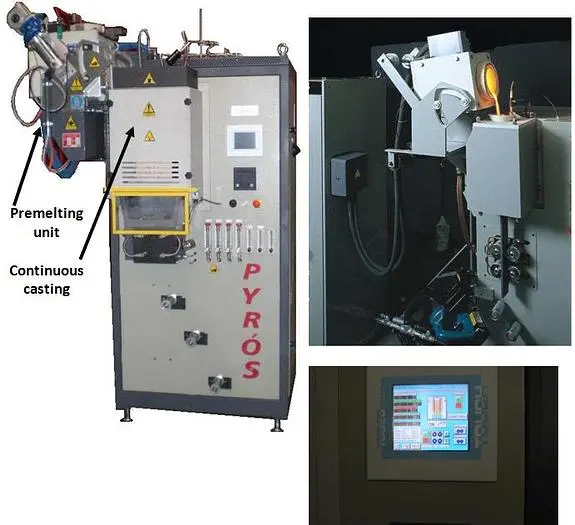

VIEW OF THE TILTING PREMELTING UNIT
Technical data sheet
Useful size of the crucible

Z50 315Ag
+
Z52 03

1500°C: Ieco
Continuouscasting
capacitykg.15withmax
plateproductionup to
mm.100.MaxTemp1500°C
Automaticpre-melterkg10Agcapacity
installedin thecontinuous
casting.

Equipped
with automatic cutting shear installed directly incontinuous
casting

Settledwithcrucible,die(die’ssizebespecified)andstartingbar. 01 114.000,00
63500334: Cruciblekg.15Ag 10 4.350,00
66300302: Crucible’scover 05 275,50
64550845: Die
uo to mm.100 10 7.650,00
61200066: Ceramicclayforcrucibleanddie 10 464,40
…………..: Crucible’scover 05 275,50
38610017: CrucibleThermocoupleforhigh temperature 02 53,40
34510015: Die
Thermocoupleforhigh temperature 02 180,76
Power supply possible: 220V or 380V 50/60 Hz / 3 Ph
Power of the furnace: 15 Kw;
Working frequency of the converter: ~20 Khz;
Usefull size of the crucible for SILVER: 14,8 Kg (AG925)
Plate: Max. 100×10 mm
Tube: Max 40 X 2mm
Wire: Min. 6 mm – Max. 10 mm
Max working temperature: 1500° C;
Extraction speed (min-max): 0,05 1,00 m/min
Die installed: To be specified by the Customer
Cooling water requirement T° 15 to 30°c: Pressure 2 – 4 bar;
Water consumption: ~ 20 l/min
Gas for protection: Nitrogen or argon
Gas consumption (pressure from 0,5 – 1 bar): 20 l/min;
Gas for the process ( for special alloy): GPL or Propane gas;
Compressed air pressure required: 4 to 8 bar;
Dimensions (depth x width x height): ~ 2050 x 1400 x 2550 mm.;
Power supply possible ( to specify during the order): 415V 50Hz/three phases;
Gas for the process: GPL or Propane gas;
GPL gas consumption (pressure from 0,03 – 0.05 bar): 0,5 m3/h;
Aspiration for the Exhaust over the crucible: (minimum speed required) 10m/sec;
Item: Description Nr. TOTAL
PRICE (€)
