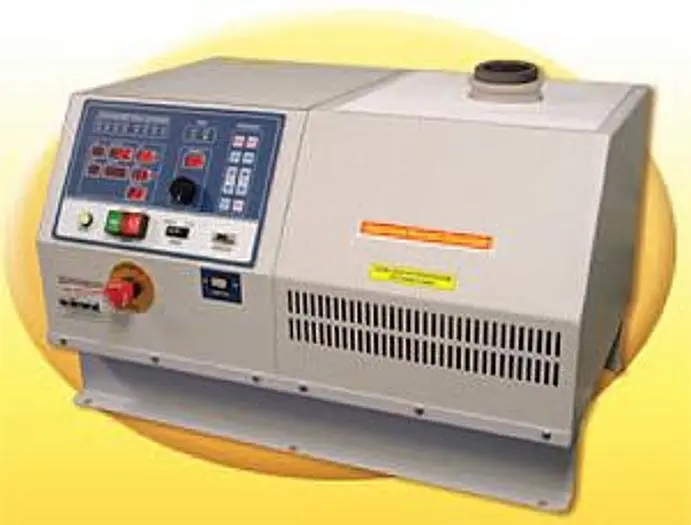

Compact Bench-Top System
Microprocessor Control
Easy and Quiet Operation
Digital Power Adjustment
Limit and Failure Diagnostic Lights
Steel Frame Construction
Furnace and Electronics Compartments are Completely Isolated
Solid State IGBT Technology
Available in 208/220V, or 380/400 3-Phase Power
Double Wound Induction Coil for Enhanced Metal Stirring
Ideal for Melting Gold, Silver, Copper and Brass
Melt Times in the 15 Minute Range
Four Models Available
Technical Data:
Prices:
Price List – LC Series Bench-Top Lift and Pour and Tilt Furnaces
Typically in Stock – if out of Stock 5-7 weeks
Tilt Furnaces
Delivery Time – 10-12 weeks

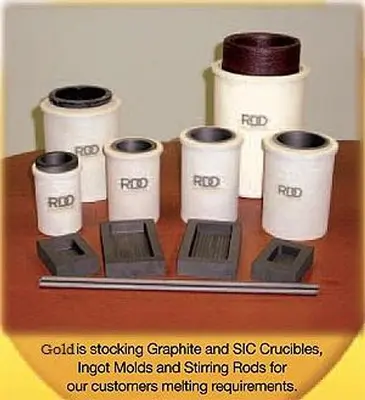

Options and Crucibles:
LC 4 Graphite Crucible...$ 65.00
LC 4 SIC Crucible...$ 115.00
LC 6 Graphite Crucible...$ 80.00
LC 10 Graphite Crucible...$ 85.00
LC 10 SIC Crucible...$ 125.00
LC 12 Graphite Crucible...$ 90.00
Infrared Pyrometer for LC15-LC125...$7,500.00
LC15 Silicon Carbide Crucible with Ceramic Container... $ 325.00
LC25 Silicon Carbide Crucible with Ceramic Container...$ 315.00
LC50 Silicon Carbide Crucible with Ceramic Container...$ 480.00
5 oz Graphite Ingot Molds – 1.187”x1.0”x0.5” H...$ 20.00
10 oz Graphite Ingot Molds – 1.985”x1.185”x0.5” H...$ 24.00
20 oz Graphite Ingot Molds – 1.98”x1.85”x0.625” H...$ 30.00
25 oz Graphite Ingot Molds – 2.437”x1.437”x0.75” H...$ 32.00
1 kg (35 oz) Graphite Ingot Molds – 2.75”x1.7”x0.75” H...$ 44.00
50 oz Graphite Ingot Molds – 3.75”x2.062”x0.75” H...$ 48.00
100 oz Graphite Ingot Molds – 5.5”x2.75”x0.75” H...$ 82.00
200 oz Graphite Ingot Molds – 6.5”x.3.75”x1.0” H...$ 180.00
250 oz Graphite Ingot Molds – 9.0”x.5.0”x1.25” H ...$ 350.00
400 oz Graphite Ingot Molds – 6.75”x.3.5”x2.0” H... $ 370.00
500 oz Graphite Ingot Molds – 8.5”x.3.5”x2.0” H...$ 395.00
1000 oz Graphite Ingot Molds – 13.0”x.5.0”x4.5” H... $1,300.00
50 oz Cast Iron Ingot Mold...$ 115.00
100 oz Cast Iron Ingot Mold...$ 125.00
500 oz Cast Iron Ingot Mold...$ 190.00
1000 oz Cast Iron Ingot Mold...$ 430.00
2000 oz Cast Iron Ingot Mold... $ 450.00
Ø3/8” x 18” Graphite Stirring Rods... $ 14.50
Ø1/2” x 24” Graphite Stirring Rods...$ 18.50
Boric Acid Flux (50 lb Bag)...$ 180.00
Closed Loop Water Circulators:
Model 10 (for LC 4 System)... $1,100.00
Model 15 (for LC 6 System)... $1,850.00
Model 25 (for LC9 and 12 systems) ...$3,800.00
Water Cooling systems for Tilt Furnaces... call
Availability:
Ex-Factory, NJ
Listed price subject to manufacturers price increases without notice.
| Weight | 100 Lbs | 100 Lbs |
Crucible Capacity: 4kg AU-18K
2 6kg Ag-0.925 6kg AU-18K
6kg Ag-0.925 10kg AU-18K
7kg Ag-0.925 12kg AU-18K
8kg Ag-0.925
Output Power (kW): 5kW 8kW 10kW 12kW
Dimensions: 28.25" W x 18.50" D x 17" H
Water Cooling: Systems Require Water Cooling
LC 4: 5.0 220 or 400V, 3-Phase $10,750.00
LC 6: 7.0 220 or 400V, 3-Phase $11,750.00
LC 10: 10 220 or 400V, 3-Phase $14,900.00
LC 12: 12 220 or 400V, 3 Phase $16,500.00
LC 15: 15 kW 15 kg 18k Au 220 or 460V, 3-Phase $35,000.00
LC25: 25 kW 40 kg 18k Au 220 or 460V, 3-Phase $42,000.00
LC50: 50 kW 100 kg 18k Au 460V, 3-Phase $65,000.00
LC125: 125 kW 460V, 3-Phase $124,000.00
Last Updated: 4/30/12
Priced From: $10,750.00
Power Supply: 220V, 3 Phase or 400V, 3 Phase 50/60 Hz
