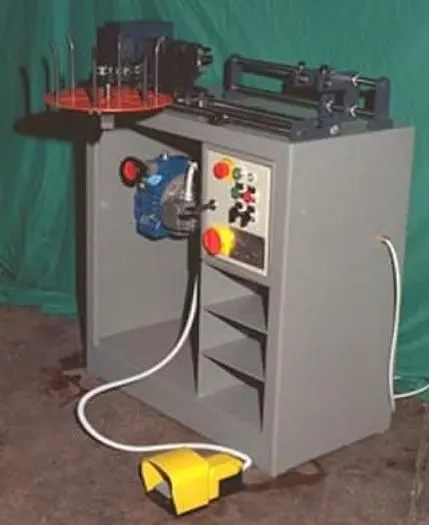

NEW TVN Mod. AVR/O-B Winding Machine for tube and spiral in continuous

NEW TVN Mod. AVR/O-B Winding Machine for tube and spiral in continuous

USD $8,950.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Tube & Pipe Machinery (Miscellaneous)
Stock #:
avr-o-b
Description

This machine is suitable for making tube starting from strips of plate.
The profiles variety of the anchorite pin and thread pin allow a lot of variety of tube' s profiles obtainable from the manufacturing. Below there are some profiles.
For a good tube result is essential that the strips have a high precision on the width. The base machine is supplied with special chuck; the maximum travel of extraction is 5 mm for turn, for building spirals in continuous. It has a carriage with loose movement on ball - bearings where are assembled the different equipments. The chuck rotation adjustable with handle from 40/500 r. p. m.. Foot-control start.

Construction standards in accordance to "CE" with respective documentation.
Installed horse power 0,75 KW.
Power supply 380 V. 50HZ Three-phase.
Dimensions:

Lengh 850 mm
Width 550 mm
Height 1100 mm
Approx. Weight 170 kg
Equipped With:
TOOLING LIST :
ROUND WINDING SCHAPE
Spina filettata (per Campanelle).. 425,00  €
Thread pin (for ear-ring)
Foro di trafila + spina ancorata.............. 291,00  €
Hole die with anchorate pin
OVAL
Spina ovale liscia................ 808,00  €
Polished oval pin
Spina filettata scomponibile (per Bracciali ovali)....... 1.965,00 €
Decomposable thread pin (for oval bracialets)
Portatrafile oscillante...................... 347,00 €
Oscillating die-holed support
Foro di trafila più spina ancorata per formare i tubi sagomati...... 902,00  €
Hole dies with anchorate pin for making the light sections tubes
Attrezzatura per costruzione di spirali in continuo con testa oscillante....... 303,00  €
Equipment for building of continuos spirals with swinging head
Mandrino a 3 cagnoli con ghiera.......... 450,00  €
Chuck three jaws with nut
- Guidafilo ottico....... 3.400,00 €
Optic thread guide
Availability:

Ex-Factory, Italy
