3044-140 Lot of 50 Tungsten Quality Carbide Medium-Size Wire and Tube Drawing Dies

3044-140 Lot of 50 Tungsten Quality Carbide Medium-Size Wire and Tube Drawing Dies

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Tube & Pipe Machinery (Miscellaneous)
Stock #:
3044-140
Description

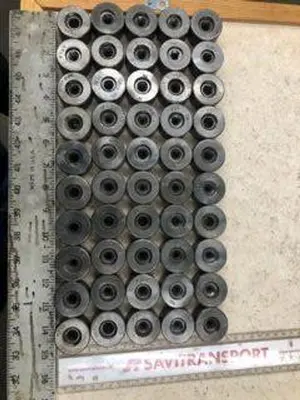

Casing dimensions- Diameter 1.5" Height .75"
Weight of 50 Dies - 22 LBS

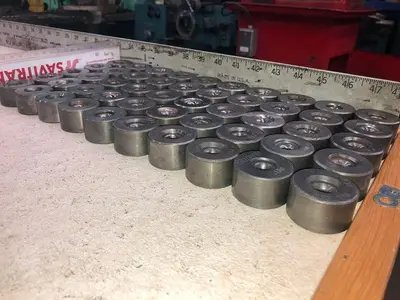

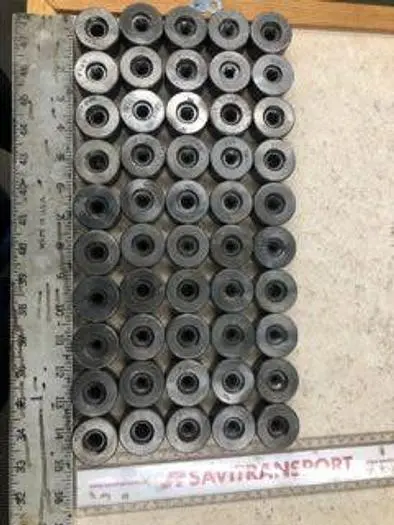

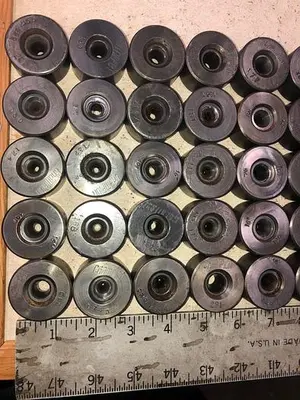

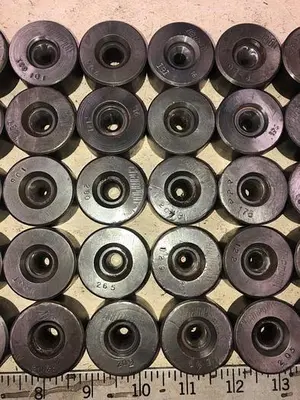

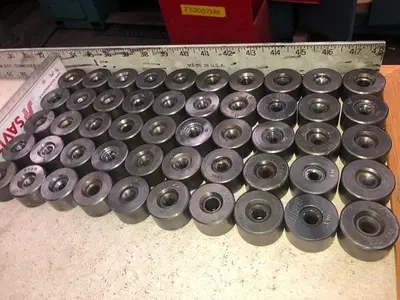

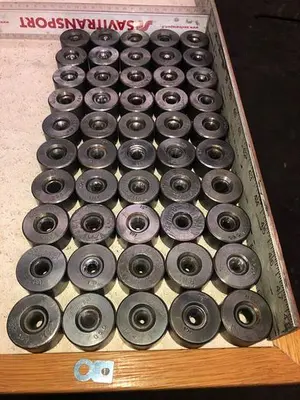

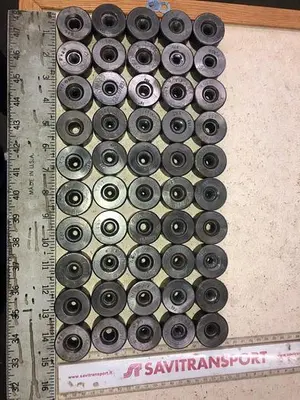

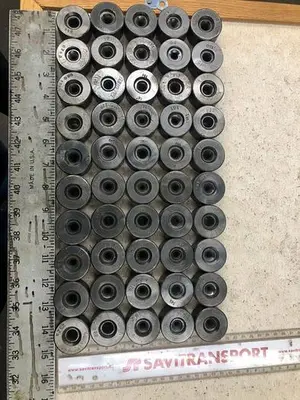

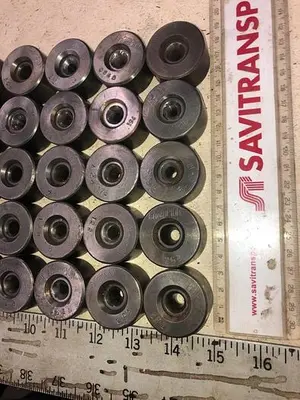

Draw Sizes as seen / Marked on die in photographs
Recently out of service
Applications:

Drawing dies are typically used in the drawing of wire, rod, bar, and tube. The materials that are drawn are typically copper alloys, aluminum alloys, and steel alloys.

Wire drawing dies are commonly used to reduce the diameter of various ferrous and non-ferrous rods and wires. Applications include various grades of low, medium and high carbon steels, steel alloys, stainless steel, welding wire as well as various non-ferrous rods and wires.

Tungsten carbide drawing dies give the wire manufacturer the ability to maintain uniform wire roundness, minimizing material usage and scrap.

Tungsten carbide dies are an excellent option for manufacturing ferrous rod-size wires. They are also ideal for short trial runs.

Specifications

Imperial tolerances [inch]: Metric tolerances [mm]
Diameter: Tolerance Diameter Tolerance
.0061 - .009: +0 / -.0002 0.155 - 0.230 +0 / -0.0051
.0091 - .052: +0 / -.0003 0.231 - 1.322 +0 / -0.0076
.0521 - .103: +0 / -.0005 1.323 - 2.618 +0 / -0.0127
.1031 - .295: +0 / -.001 2.619 - 7.495 +0 / -0.0254
.2951 - .500: +0 / -.002 7.496 - 12.724 +0 / -0.0508
.5001 - 1.000: +0 / -.003 12.725 - 25.424 +0 / -0.0762
1.001 - 7.000: +0 / -.004 25.425 - 177.80 +0 / -0.1016
